| Brand Name: | LANG TEND |
|---|---|
| Technique: | Woven |
| Application: | Woven Wire Mesh |
| Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire |
| Weave Style: | Plain Weave |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

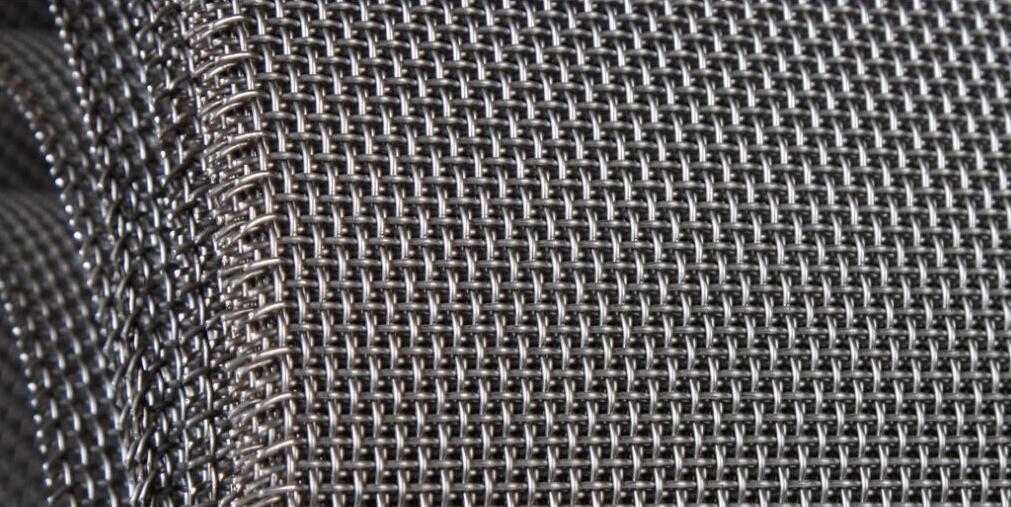

Stainless Steel Woven Wire Mesh
Material:
Stainless Steel Grade. 302,304,304L,316,316L
304 is standard stainless grade and is most common. It has outstanding forming and welding characteristics.
316 is premium stainless grade and also called marine grade. It has better resistance to heat and corrosion and is used for food and marine industry.
the other grades of stainless steel has their own characters and are used for specific application.
Features
High resistance to corrosion,rust, acid, alkali and heat.
High strength and tension
Durable
Bright smooth surface, no need for further processing
Easy to maintain
Cost effective for long term
Supplying Forms: both roll and panel are available. the sizes can be made according to your request.

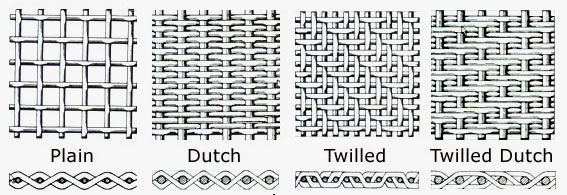

Weaving Type: Plain weave, Twill weave,Dutch weave.
Uses:Architectural Mesh, Filtration, Insect Screen/Security Mesh, Food processing/drying, screening/sieving
Specification Sheet:
Mech/Inch |
Wire Diameter |
Aperture |
Open Area (%) |
Weight/100Sq.Ft (LB) | ||
Inch |
mm |
Inch |
mm | |||
1x1 |
0.080 |
2.03 |
0.920 |
23.37 |
84.6 |
41.1 |
2X2 |
0.063 |
1.60 |
0.437 |
11.10 |
76.4 |
51.2 |
3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
70.1 |
56.7 |
4X4 |
0.063 |
1.60 |
0.187 |
4.75 |
56.0 |
104.8 |
4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
65.9 |
57.6 |
5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
63.2 |
54.9 |
6X6 |
0.035 |
0.89 |
0.132 |
3.35 |
62.7 |
48.1 |
8X8 |
0.028 |
0.71 |
0.097 |
2.46 |
60.2 |
41.1 |
10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
56.3 |
41.2 |
10X10 |
0.020 |
0.51 |
0.080 |
2.03 |
64.0 |
26.1 |
12X12 |
0.023 |
0.584 |
0.060 |
1.52 |
51.8 |
42.2 |
12X12 |
0.020 |
0.508 |
0.063 |
1.60 |
57.2 |
31.6 |
14X14 |
0.023 |
0.584 |
0.048 |
1.22 |
45.2 |
49.8 |
14X14 |
0.020 |
0.508 |
0.051 |
1.30 |
51.0 |
37.2 |
16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
50.7 |
34.5 |
18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
48.3 |
34.8 |
20X20 |
0.020 |
0.508 |
0.0300 |
0.76 |
36.0 |
55.2 |
20X20 |
0.016 |
0.406 |
0.0340 |
0.86 |
46.2 |
34.4 |
24X24 |
0.014 |
0.356 |
0.0277 |
0.70 |
44.2 |
31.8 |
30X30 |
0.013 |
0.330 |
0.0203 |
0.52 |
37.1 |
34.8 |
30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
40.8 |
29.4 |
30X30 |
0.009 |
0.229 |
0.0243 |
0.62 |
53.1 |
16.1 |
35X35 |
0.011 |
0.279 |
0.0176 |
0.45 |
37.9 |
29.0 |
40X40 |
0.010 |
0.254 |
0.0150 |
0.38 |
36.0 |
27.6 |
50X50 |
0.009 |
0.229 |
0.0110 |
0.28 |
30.3 |
28.4 |
50X50 |
0.008 |
0.203 |
0.0120 |
0.31 |
36.0 |
22.1 |
60X60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
60X60 |
0.007 |
0.178 |
0.0097 |
0.25 |
33.9 |
20.4 |
70X70 |
0.0065 |
0.165 |
0.0078 |
0.20 |
29.8 |
20.8 |
80X80 |
0.0065 |
0.165 |
0.0060 |
0.15 |
23.0 |
23.2 |
80X80 |
0.0055 |
0.140 |
0.0070 |
0.18 |
31.4 |
16.9 |
90X90 |
0.005 |
0.127 |
0.0061 |
0.16 |
30.1 |
15.8 |
100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
30.3 |
14.2 |
100X100 |
0.004 |
0.102 |
0.0060 |
0.15 |
36.0 |
11.0 |
100X100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
110X110 |
0.0040 |
0.1016 |
0.0051 |
0.1295 |
30.7 |
12.4 |
120X120 |
0.0037 |
0.0940 |
0.0064 |
0.1168 |
30.7 |
11.6 |
150X150 |
0.0026 |
0.0660 |
0.0041 |
0.1041 |
37.4 |
7.1 |
160X160 |
0.0025 |
0.0635 |
0.0038 |
0.0965 |
36.4 |
5.94 |
180X180 |
0.0023 |
0.0584 |
0.0033 |
0.0838 |
34.7 |
6.7 |
200X200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
250X250 |
0.0016 |
0.0406 |
0.0024 |
0.0610 |
36.0 |
4.4 |
270X270 |
0.0016 |
0.0406 |
0.0021 |
0.0533 |
32.2 |
4.7 |
300X300 |
0.0051 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
325X325 |
0.0014 |
0.0356 |
0.0017 |
0.0432 |
30.0 |
4.40 |
400X400 |
0.0010 |
0.0254 |
0.0015 |
0.370 |
36.0 |
3.3 |
500X500 |
0.0010 |
0.0254 |
0.0010 |
0.0254 |
25.0 |
3.8 |
635X635 |
0.0008 |
0.0203 |
0.0008 |
0.0203 |
25.0 |
2.63 |
