| Brand Name: | GLVAC |
|---|---|

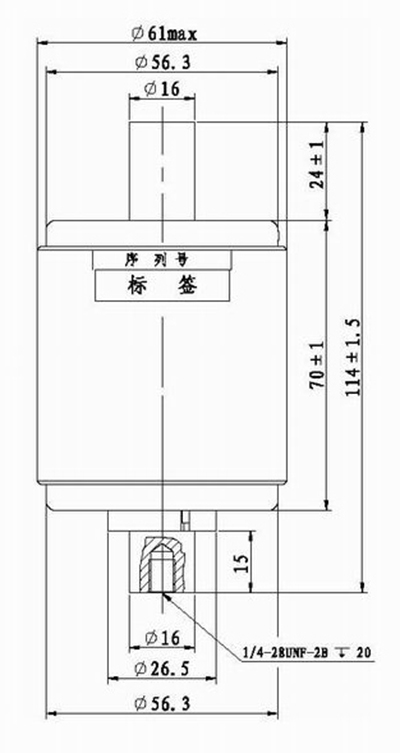

| Size: | 61*115mm |
| Type: | Interrupter |
| Material: | ceramic |
| Color: | white |
| Model Number: | TJ-3.6/300 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description:
the Interrupter adopts " one shut technology", ceramic shell, AgWC as the contact material; is characterized by high insulation, low stop-flow, strong blowout ability, long life, small size etc, and has advantages as easy to maintain, no explosion risk,pollution-free and low noise etc. Contactors assembled by it are used to control and protect the electricity transmission and distribution system in electrical, mechanical, chemical, metallurgy, mining and railway department, especially in frequent operation fields.
Product Details Introduction
Rated working voltage:
kV
3.6 Rated working current:
A
300 Rated making current capacity:
KA/times
3/50 Rated breaking current capacity:
KA/times
2.4/50 Limiting breaking current capacity:
KA/times
3/3 Rated short-time withstand current /duration:
KA/S
2.4/10 Rated current on and off times:
Times
1×106 1 minute withstand voltage:
KV
15 Contact resistance under contact automatic Closing pressure:
uΩ
≤80 Mechanical Life:
Times
1×106 Contact automatic closing Force at atmospheric pressure:
N
34±10 Contact Max stroke:
mm
4 Counterforce at Contact rated stroke:
N
47±10 Contact erosion limit:
mm
1 Interrupter Max weight:
Kg
0.6 Storage duration:
Year
15
the specification required of the contactor structure Contact rated stroke:
mm
2.8±0.2 Contact Overtravel:
mm
0.8±0.2 Rated contact working pressure:
N
130 Average opening speed:
m/s
0.3~0.5 Average closing speed:
m/s
0.05~0.15 Contact closing bounce time:
ms
≤3 Three-phases synchronization:
ms
≤1.5
