| Brand Name: | GLVAC |
|---|---|
| Size: | 60*165mm |
| Type: | Hydrogen Thyratrons |
| Material: | ceramic |
| Color: | white |
| Model Number: | GL8613 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description:
| L-3: | L-4884B |
| Perkin Elmer: | HY-1A |
| E2V: | 8503B |
| Triton: | 8613 |
Product Details Introduction
| Anode Parameter | |
| Peak forward anode voltage: | 16kV |
| Peak inverse anode voltage: | 16kV |
| Peak anode current: | 500A |
| Average anode current: | 0.5A |
| Rate of rise of anode current: | 2000A/μs |
| Plate break down factor: | 10×109Vapps |
| Maximum pulse power: | 4MW |
| Griddrive | |
| Unloaded grid drive pulse voltage: | 200V～600V |
| Grid pulse duration: | 2μs |
| Rate of rise of grid pulse: | 1.2kV/μs |
| Peak inverse grid voltage: | 200V(max) |
| Forward impedance of grid circuit: | 250Ω～500Ω |
| Heater | |
| Heater voltage: | 6.3V±8%Vac |
| Heater current: | 6A～11.5A |
| Minimum heater time: | 5min |
| Mechanical | |
| Mounting position: | Any |

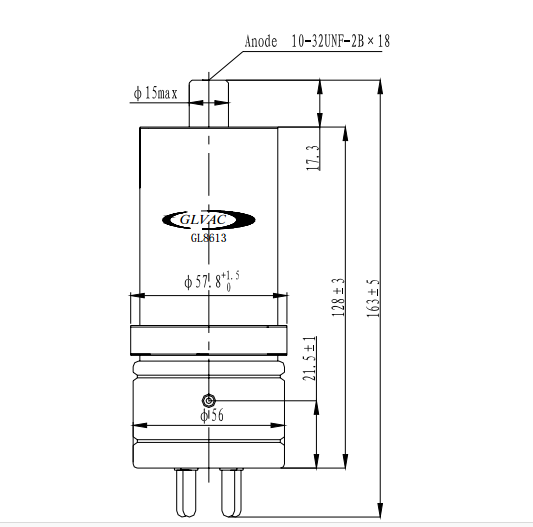

| Dimension: | See outline |
| Cooling way: | Forced-air |
| Cross reference | |
| L-3: | L-4884B |
| Perkin Elmer: | HY-1A |
| E2V: | 8503B |
| Triton: | 8613 |
