| Brand Name: | GLVAC |
|---|---|
| Size: | 80*310mm |
| Type: | Thyratrons |
| Material: | ceramic |
| Color: | white |
| Model Number: | GL1551A |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description:
the Hydrogen thyratrons Cross reference
E2V CX1551
Product Details Introduction
| Anode Parameter | |
| Peak forward anode voltage: | 33kV |
| Peak inverse anode voltage: | 25 kV |
| Peak anode current: | 1000A |
| Peak anode current: | 2000A (Pulse repetition rate 60pps Max) |
| Average Anode Current: | 1.25A |
| Rate of rise of anode current: | 5000k A/μ s (see notes 1) |
| Anode Dissipation Factor: | 2.5kA |
| Average Anode Current: | 18×109VApps |
| Maximum pulse power: | 18MW |
| Grid 2 drive | |
| Unloaded grid 2 drive pulse voltage: | 300V～1000V |
| Grid 2 pulse duration: | 1μs(min) |
| Rate of rise of grid 2 pulse: | 1kV/μs (min) |
| Grid 2 pulse delay: | 0.5μs～3μs |
| Peak inverse grid 2 voltage: | 450V(max) |
| Loaded grid 2 bias voltage: | －50V～－150V |
| Forward impedance of grid 2 circuit: | 50Ω～800Ω |
| Grid 1 Pulse drive | |
| Unload grid 1 drive pulse voltage: | 300V ~ 1000V |
| Grid 1 pulse duration: | 2μs(min) |
| Rate of rise of grid 1 pulse: | 1kV/μs(min) |
| Peak inverse grid 1 voltage: | 450V(max) |
| Drive current: | 0.3A～1.0A |
| Grid 1 DC drive | |
| DC grid 1 unloaded priming voltage: | 75V～150 V |
| DC grid 1 priming current: | 50mA ~ 100 mA |
Heater |
|
| Heater voltage: | 6.3V±5%V AC |
| Heater current: | 22 A ±1A |
| Minimum heater time: | 5min |
Mechanical |
|
| Mounting position: | See notes 1 |

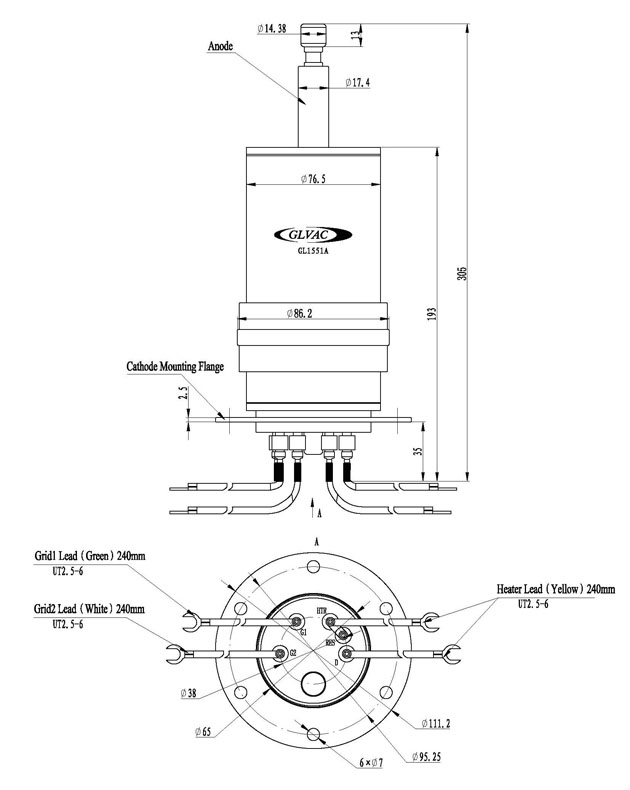

| Dimension: | See outline |
| Cooling way: | Forced-air (see notes 2, 3) |
Cross reference |
|
| E2V: | CX1551 |
