| Brand Name: | Autorun |
|---|---|
| Temperature of Media: | Low Temperature |
| Material: | Stainless Steel |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | Standard or OEM |
| Place of Origin: | China (Mainland) |
| Port Size: | 1/2"-4" |
| Media: | Water |
| Power: | Pneumatic |
| Structure: | Angle |
Quick Details
Specifications

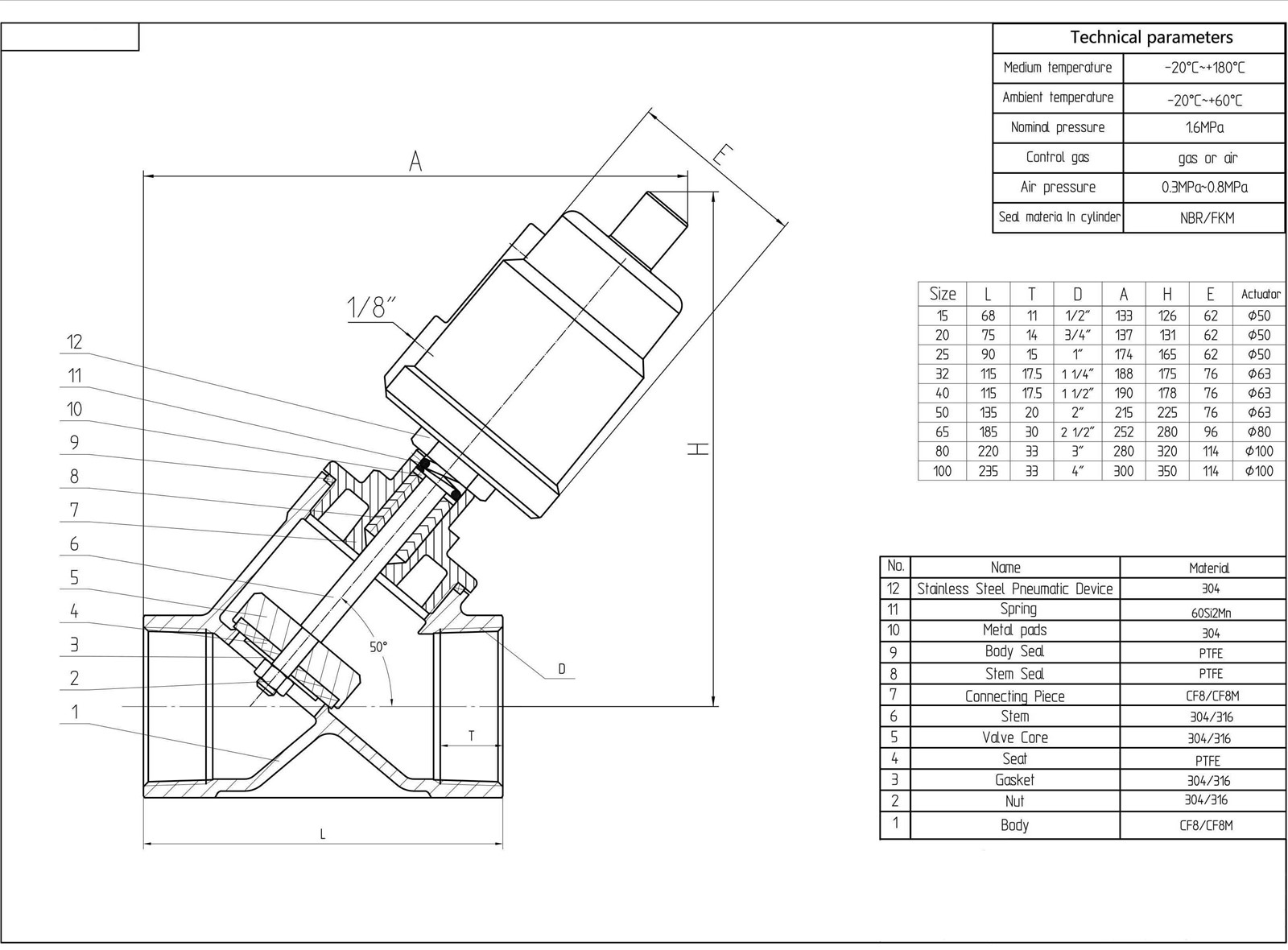

PRODUCT DETAILSTechnical Data:
| Body Material | CF8M (SS316), CF8 (SS304) |
| Seal Material | PTFE |
| Actuator Material | Stainless steel |
| Nominal Pressure | Max. 1.6MPa (232psi) |
| Air Pressure | 0.3 - 0.8MPa (43.5-116psi) |
| Actuator Size | 27mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm |
| Medium | Water, Alcohol, Oil, Dye, Steam, Neutral gas, Organic solvent, Acid and lye |
| Medium temp. | -10℃ - +180℃, 25℃ - +220℃ |
| Ambient temp. | -10℃ - +80℃ |
| Actuator Type | Normally closed, Normally open, Double acting |
| Connection | Thread (BSP, BSPT, NPT) |
| General Application | Gas Industry; Beer & Drinking Water,;Textile printing & Dyeing; Pharmacy & Medical Industry; Chemical Industry; Water & Sewage Treatment |
