| Brand Name: | Autorun |
|---|---|
| Temperature of Media: | Low Temperature |
| Material: | Stainless Steel |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | Standard or OEM |
| Place of Origin: | China (Mainland) |
| Port Size: | 1/2"-4" |
| Media: | Water |
| Power: | Pneumatic |
| Structure: | Diaphragm |
Quick Details
Specifications
PRODUCT DETAILS
| Parts | Material |
| Body | Cast iron, Ductile Iron, Carbon steel, Stainless steel |
| Bonnet | Cast iron, Ductile Iron, Carbon steel, Stainless steel |
| Lining | Fluorinated Ethylene Propylene |
| Diaphragm | PTFE + EPDM |
| Disc | Cast iron, Carbon steel |
| Cylinder | Aluminum alloy |
| Piston | Aluminum alloy |
| Stem | Stainless steel 304 |
| Connection | Flange |

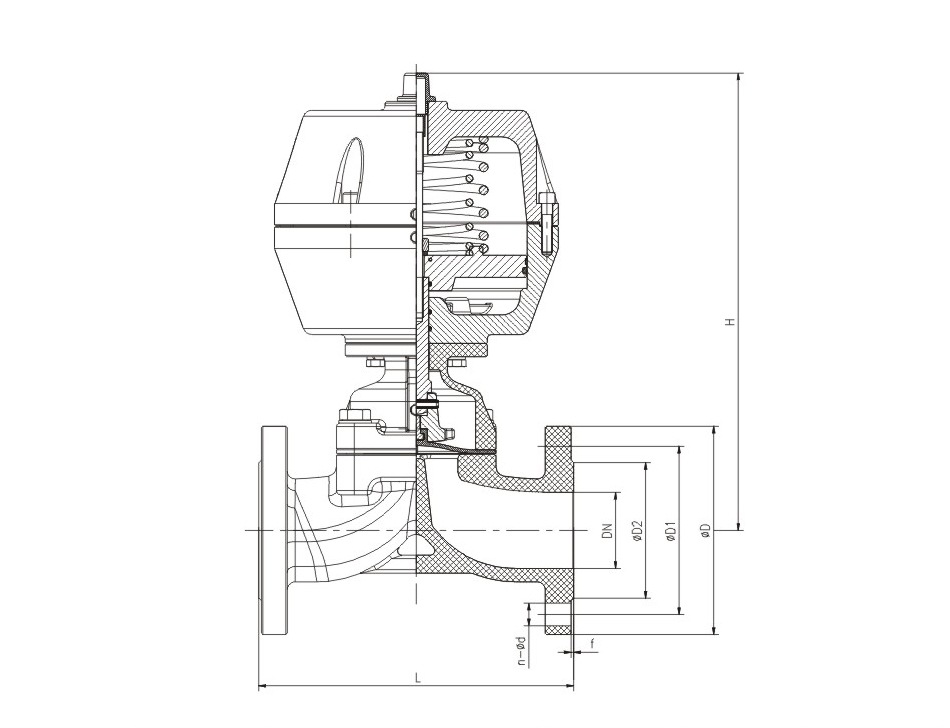

| DN | L | D | D1 | n- φd | F | H1 |
| 15 | 125 | 95 | 65 | 4-14 | 2 | 235 |
| 20 | 135 | 105 | 75 | 4-14 | 2 | 247 |
| 25 | 145 | 115 | 85 | 4-14 | 2 | 251 |
| 32 | 160 | 140 | 100 | 4-18 | 2 | 262 |
| 40 | 180 | 150 | 110 | 4-18 | 3 | 316 |
| 50 | 210 | 165 | 125 | 4-18 | 3 | 329 |
| 65 | 250 | 185 | 145 | 4-18 | 3 | 380 |
| 80 | 300 | 200 | 160 | 4-18 | 3 | 396 |
| 100 | 350 | 215 | 180 | 8-18 | 3 | 425 |
