Specification:

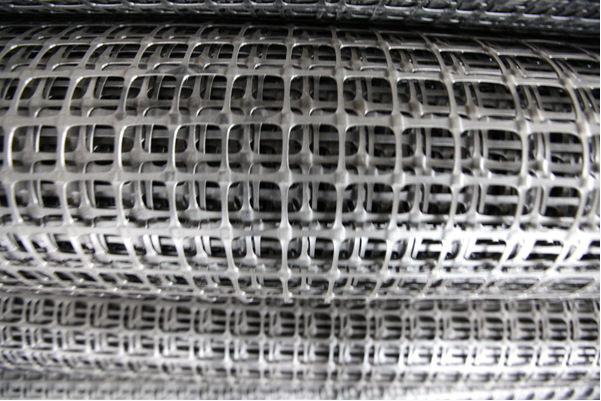

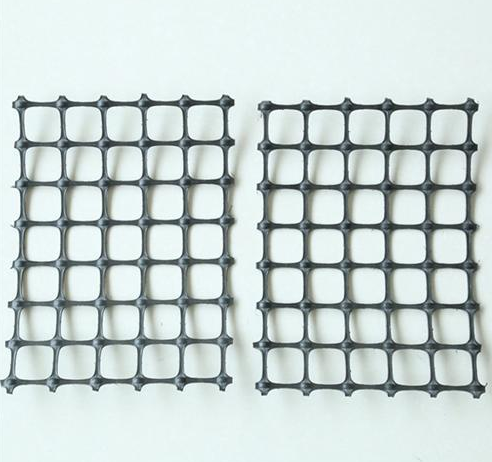

1) Polypropylene Biaxial geogrid
2)Materials:polypropylene (PP)
3) Tensile strength:10 ~ 50kn/m
4)Width:4~ 6m

Introduction: Biaxial geogrid, made of high molecular polymer, extruded into sheet and then punched into regular mesh pattern, and finally stretched in longitudinal and transverse directions.

Features: 1. with high tensile strength in longitudinal and transverse directions

2.this structure can provide a chain system to provide more efficient bearing and spreading reinforce for the soft soil.

Application: Mainly applied in highway, railway, slope protection projects etc.

1)strengthen land loading capacity.

2) convenient to construct;reduce processing and maintenance cost.

3) Prevent highway surface from collapse and crack.

4) Enhance the bearing capacity of road foundation and improve the durability of highway

PArameter:

Item                           Spec	TGSG15-15	TGSG20-20	TGSG30-30	TGSG40-40	TGSG45-45
Longitudinal Tensile Strength ≥(KN/m)	15	20	30	40	45
Transverse Tensile Strength≥(KN/m)	15	20	30	40	45
Longitudinal  Elongation≤(%)	15
Transverse    Elongation≤(%)	13
Longitudinal Strength at 2% Strain ≥(KN/m)	5	7	10.5	14	16
Transverse Strength at 2% Strain  ≥(KN/m)	5	7	10.5	14	16
Longitudinal Strength at 5% Strain ≥(KN/m)	7	14	21	28	32
Transverse Strength at 5% Strain ≥(KN/m)	7	14	21	28	32
Remark	Roll Length:50m Roll width:4~6m
