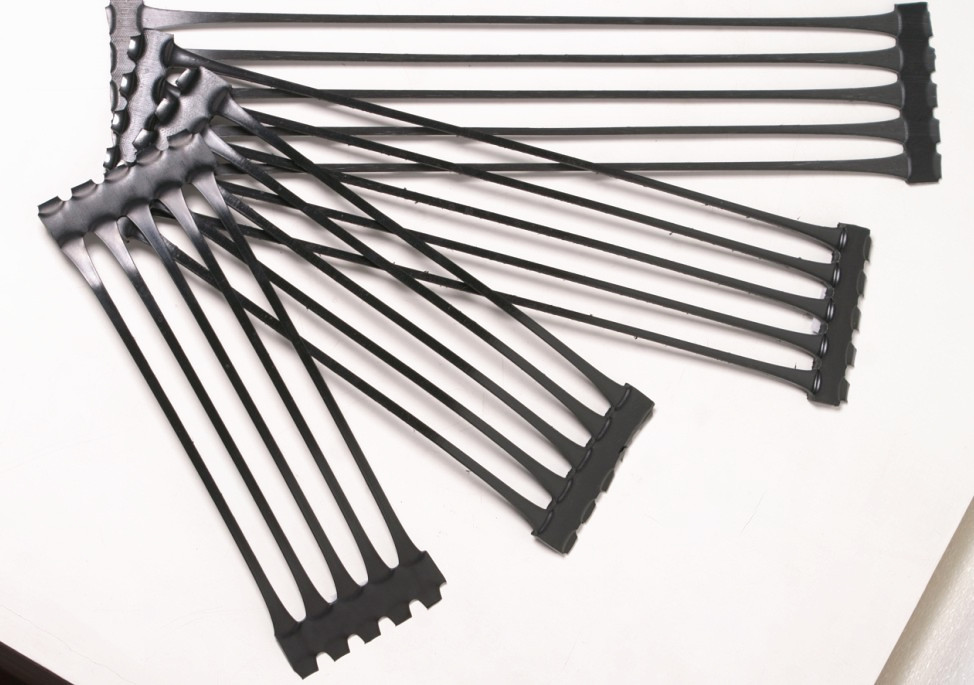

Uniaxial geogrid



Uniaxial geogrid is made of polypropylene or HDPE,through extruding,plate-forming,punching,draw it vertically to be uniaxial plastic geogrid, mainly applied in highway, railway,retaining wall,dam and slope protecting projects.



Function:

1. Improving bearing capacity of road foundation and longer its service life

2. Preventing road surface from subsiding and cracking
3. Be convenient for construction, reducing cost and maintaining expense
4. Distribute the pressure of slopes and providing stability for slopes

5. Supply reinforcement power for retaining wall, dam,slop,road,railway and soft soil etc.


HDPE Uniaxial Plastic Geogrid  Properties:

Item	Unit	TGDG35	TGDG50	TGDG80	TGDG120	TGDG140	TGDG160	TGDG200
Tensile strength	KN/m	35	50	80	120	140	160	200
Elongation ≤	%	≤11.5
Carbon Content≥	%	≥2
Tensile strength at 2% strain	KN/m	7.5	12	21	33	38	47	58
Tensile strength at 5% strain	KN/m	21.5	23	40	65	75	93	115
Weight/Unit area	g/㎡	270	332	448	688	861	820	1170
Length:50m/100m; with:1m.
