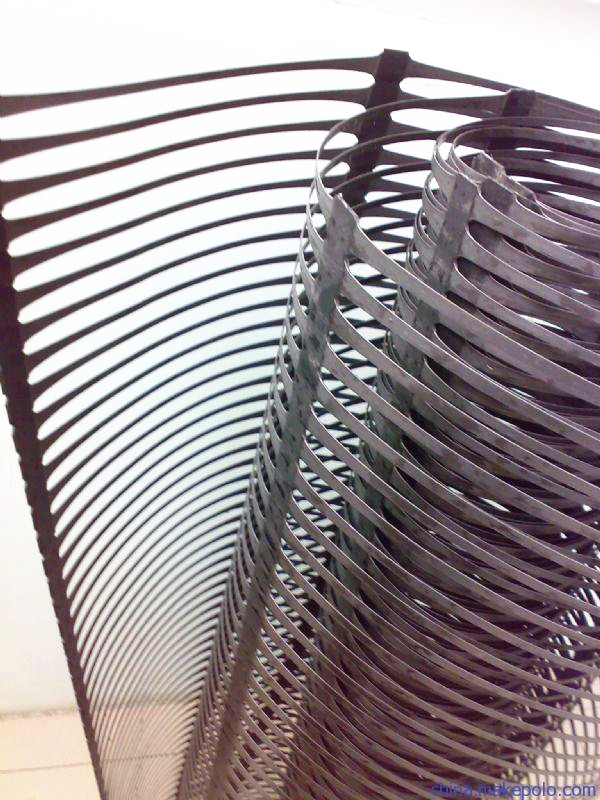

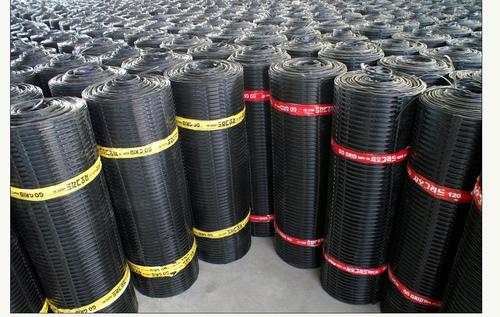

Uniaxial geogrid

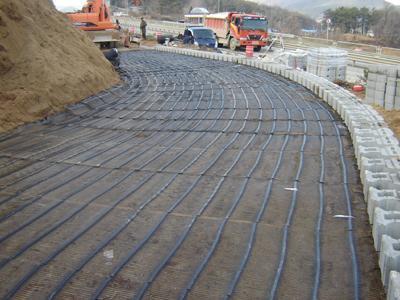

Uniaxial geogrid is made of polypropylene or HDPE,through extruding,plate-forming,punching,draw it vertically to be uniaxial plastic geogrid, mainly applied in highway, railway,retaining wall,dam and slope protecting projects.



Function:

1. Improving bearing capacity of road foundation and longer its service life

2. Preventing road surface from subsiding and cracking
3. Be convenient for construction, reducing cost and maintaining expense
4. Distribute the pressure of slopes and providing stability for slopes

5. Supply reinforcement power for retaining wall, dam,slop,road,railway and soft soil etc.

PP Uniaxial Plastic Geogrid  Properties:

Item	Unit	TGDG35	TGDG50	TGDG80	TGDG110	TGDG150	TGDG180	TGDG200	TGDG260
Tensile strength	KN/m	35	50	80	110	150	180	200	260
Elongation ≤	%	10
Tensile strength at 2% strain	KN/m	10	12	26	32	45	55	70	90
Tensile strength at 5% strain	KN/m	20	28	48	66	90	110	120	180
Weight/Unit area	g/㎡	180	217	292	391	524	622	666	977
Length:50m/100m; with:2.5m/3m.
