| Type: | COG |
|---|---|
| Brand Name: | CNK |
| Interface Type: | SPI |
| Resolution: | 12864 |
| application: | LCD |
| Model Number: | CNK12864-17005A1 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
CNK Electronics CO.,LTD.

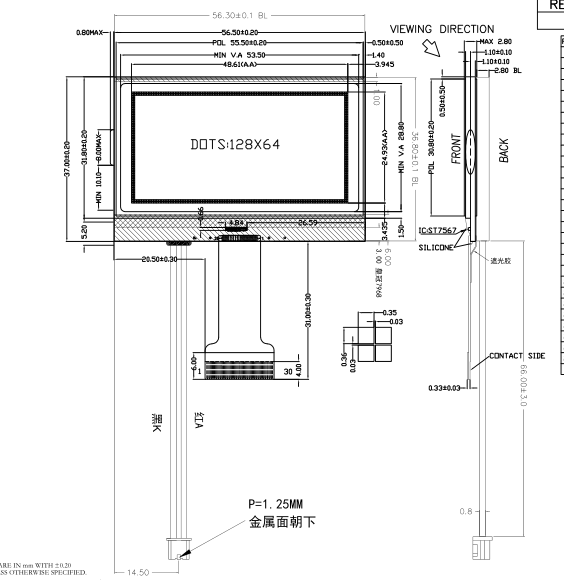

Module size(WxHxT):56.5x37.0x5.6 mm
Display view area(WxH):53.5x23.8 mm
LCD type:FSTN/Positive/Transflective
View angle:12 O'clock
Driver IC:ST7567
Backlight Driver type:LED/White
DC to DC circuit:Build-in
Weight:TBD
Operating Temperature:-20C to 70C
Storage Temperature:-30C to 80C
Drive Method:1/64 Duty,1/9 Bias
Connector:COG+FPC
LCD Operating Voltage:9.0V
Module size(WxHxT):56.5x37.0x5.6 mm
Display view area(WxH):53.5x23.8 mm
LCD type:FSTN/Positive/Transflective
View angle:12 O'clock
Driver IC:ST7567
Backlight Driver type:LED/White
DC to DC circuit:Build-in
Weight:TBD
Operating Temperature:-20C to 70C
Storage Temperature:-30C to 80C
Drive Method:1/64 Duty,1/9 Bias
Connector:COG+FPC
LCD Operating Voltage:9.0V
