| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | TECHWELL |
| Weight: | 7 T |
| color: | Blue |
| Place of Origin: | China (Mainland) |
| Material Thickness: | 2-4mm |
| Forming Station: | About 15 Stations |
| Axis Diameter: | 100mm |
| Working Speed: | 10-12m/min |
Quick Details
Specifications
15KW Highway Guardrail Roll Forming Machine with 7 Rollers Leveling For W Beam Guardrail
A. Summary of Guardrail Roll Forming Machine
B. Main Components
C. Reference Profile Drawing
A. Summary of Guardrail Roll Forming Machine
this 3 wave guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.
Thi
- Material Thickness: 2-4mm
- Forming Station: 15 excluding the feeding rollers and leveling rollers
- 7 Rollers leveling
- Principal Axis Diameter: ￠100mm
- Working Speed: 10-12m/min
- Main Power: 30KW
- Leveling Power: 2.2KW
- Hydraulic Power: 15KW
- Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
- Gross Weight of Machine: about 18 Ton
- Voltage: 380V, 3 Phase 50Hz
B. Main Components
- Hydraulic Decoiler ------------------------------------------ 1 Unit
- Leveling and Feeding Guide ------------------------------1 Unit
- Punching Device ------------------------------------------- 1 Unit
- Roll Forming Machine -------------------------------------- 1 Unit
- Hydraulic Cutting ------------------------------------------ 1 Unit
- Hydraulic Station ------------------------------------------ 1 Unit
- PLC Contol System ---------------------------------------- 1 Unit
- Runout Table ---------------------------------------------- 1 Unit
- Spare Coupling -------------------------------------------- 1 Unit

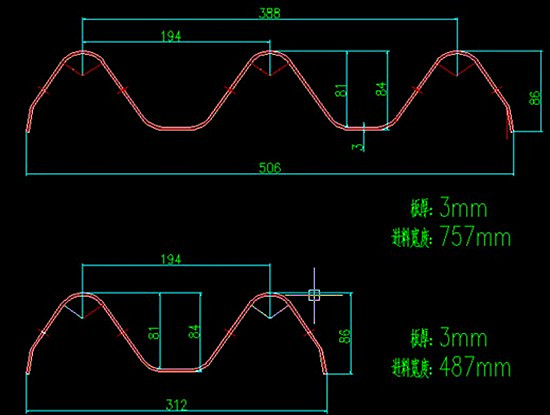

C. Reference Profile Drawing
