| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | TECHWELL |
| Weight: | 7 T |
| color: | Blue |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Steel Sigma Profile Roll Forming Machine for Making Highway Guardrail with 16 Steps Forming Station
Main Specifications
Main Components
Reference Profile Drawing
Main Specifications
- Material thickness: 4mm
- Main power: 21KW
- Forming Station: 16 steps
- Cutting power of Sigma Profile Rll Forming Machine: 7.5KW
- Drive of Sima Section Roll Forming Machine: Gearbox gimal transmssion
- Roller Material: GCr15 steel, quenched and heated process
- Shaft material: 45# Steel, heated and quenched treatment
- Machine frame: Welded structural steel
- Machine base: 36# H steel
- Thickness of Frame steel: S18
Main Components
- Hydraulic Decoiler ------------------------------------------- 1 Unit
- Leveling and Feeding Guide -------------------------------1 Unit
- Roll Forming Machine --------------------------------------- 1 Unit
- Punching Device --------------------------------------------- 1 Unit
- Hydraulic Cutting --------------------------------------------- 1 Unit
- Hydraulic Station --------------------------------------------- 1 Unit
- PLC Contol System ----------------------------------------- 1 Unit
- Runout Table ------------------------------------------------- 1 Unit
- Spare Coupling ----------------------------------------------- 1 Unit

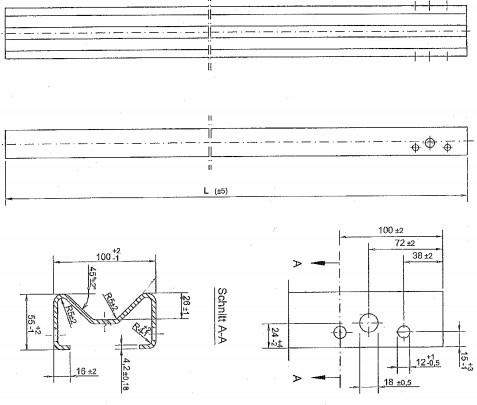

Reference Profile Drawing
