| Max. Power: | 0.55W |
|---|---|
| Number of Cells: | 11pcs |
| Size: | 85*56mm |
| Material: | Polycrystalline Silicon |
| Brand Name: | JUST IT SOLAR |
Quick Details
Specifications

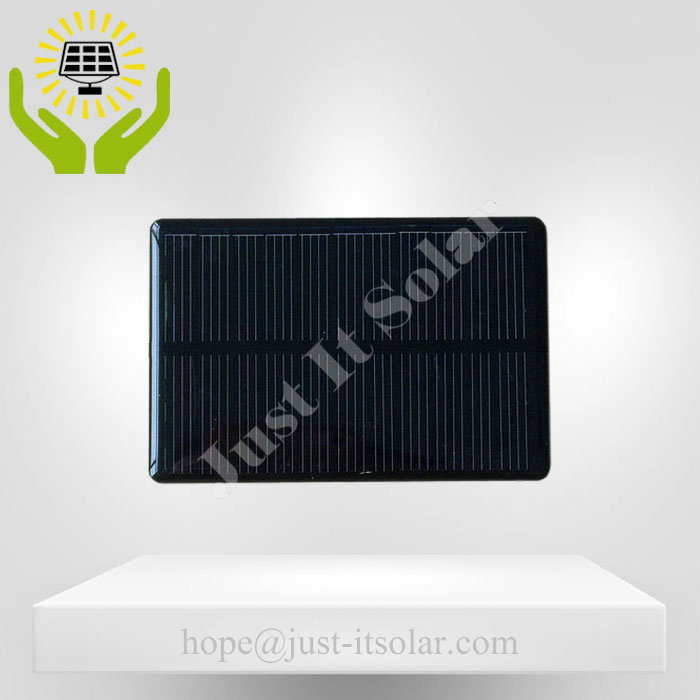

5.5V 100mA 85*56mm Epoxy Resin Custom Solar Panel
Model No. |
JI-8556-5.5V100MA |
Sealing Material |
Epoxy resin |
Solar Cell |
Polycrystalline |
No. of Cells |
11pcs |
Max Output Power (Wmp) |
0.55W |
Max Power Voltage (Vmp) |
5.5V |
Max Power Current (Imp) |
100mA |
Open Circuit Voltage (Voc) |
6.5V |
Short Circuit Current (Isc) |
110mA |
Size |
85*56mm |
Thickness |
2.5mm |
Output Tolerance |
+/-5% |
Size Tolerance |
+/-0.3mm |
Operating Temperature |
-20oC to 60oC |
Life Span |
1-2 years |
Warranty |
6 months |
Standard Testing Conditions |
Irradiance 1000W/m2, Temperature 25oC, AM 1.5 |
We can Make custom mini solar panels. Please contact me freely!
