1.Brief Introduction:

the hot air circulation drying oven is the use of steam and electricity as a heat source, is heated by a heater, a lot of hot air is circulated in the oven, through continuous supply of fresh air from air inlet into the oven, and then discharge from wet exhaust outlet, thus increasing the heat transfer effect, so that the inside material moisture gradually reduced.



2.Techincal parameters:

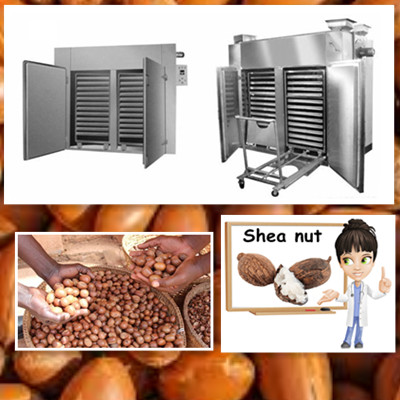

Shea Nut Dryer
48 Tray Dryer Machine-Hot Air Circulation Type
Capacity: 120kg/batch
Heating power: 15kw
Power consumption: 7.5kw/h
Circulating fan quantity: 1
Circulating fan power: 0.45kw
Trays quantity: 48
Trolleys quantity: 2
Dimension: 2300*1200*2300mm
Weight: 800kg



3.Performance features:
★  most of the hot air is circulated in the oven, high thermal efficiency and energy saving.
★  Positive draft function with adjustable plate to separate air, enables the materials to be dried evenly.
★  Wide selection of heating source such as steam, hot water, electronic, far infrared and so on.
★ Low noise, balanced running, automatic temperature control, convenient installation and maintenance.
★  Wide application range, variety of materials can be drying, one kind of general drying equipment.
★  Made of high quality materials: carbon steel, aluminum alloy, stainless steel, product final water content<1%.
