| Max. Power: | 0.6W |
|---|---|
| Number of Cells: | 8pcs |
| Size: | 90*60mm |
| Material: | Polycrystalline Silicon |
| Brand Name: | JUST IT SOLAR |
Quick Details
Specifications

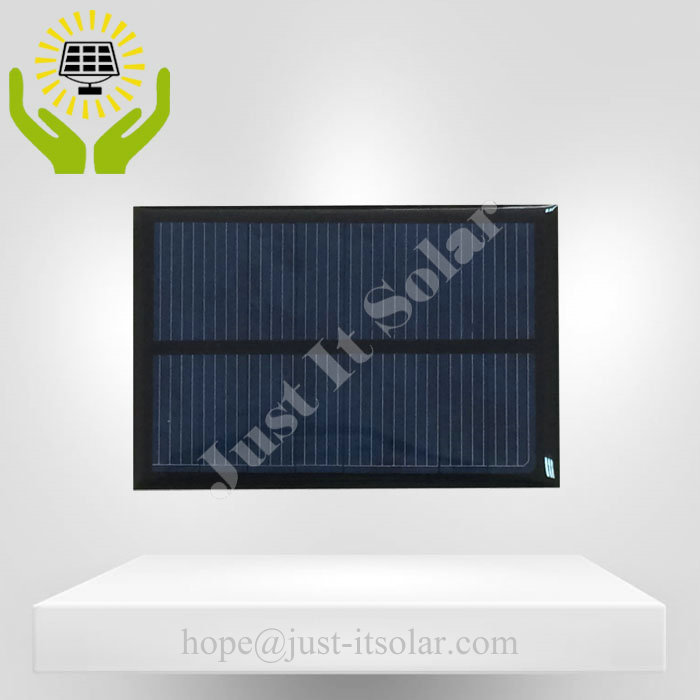

4V 150mA 90*60mm Epoxy Resin Custom Solar Cell
Model No. |
JI-9060-4V150MA |
Sealing Material |
Epoxy resin |
Solar Cell |
Polycrystalline |
No. of Cells |
8pcs |
Max Output Power (Wmp) |
0.6W |
Max Power Voltage (Vmp) |
4V |
Max Power Current (Imp) |
150mA |
Open Circuit Voltage (Voc) |
4.8V |
Short Circuit Current (Isc) |
165mA |
Size |
90*60mm |
Thickness |
2.5mm |
Output Tolerance |
+/-5% |
Size Tolerance |
+/-0.3mm |
Operating Temperature |
-20oC to 60oC |
Life Span |
1-2 years |
Warranty |
6 months |
Standard Testing Conditions |
Irradiance 1000W/m2, Temperature 25oC, AM 1.5 |
We can
Make custom mini solar panels. Please contact me freely!
