| Max. Power: | 1.2W |
|---|---|
| Number of Cells: | 12pcs |
| Size: | 109*84mm |
| Material: | Polycrystalline Silicon |
| Brand Name: | JUST IT SOLAR |
Quick Details
Specifications

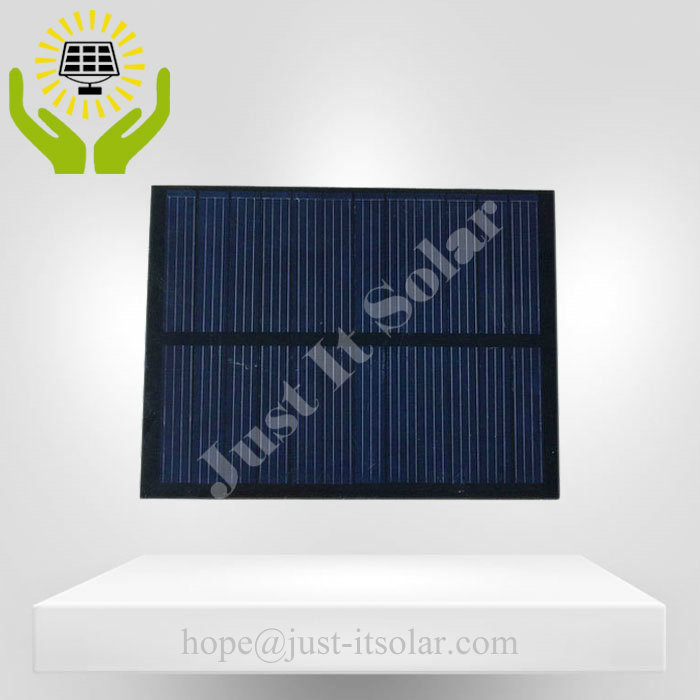

6V 200mA 109*84mm Small PET Laminated Solar Panel
Model No. |
JI-10984-6V200MA |
Sealing Material |
PET |
Solar Cell |
Polycrystalline |
No. of Cells |
12pcs |
Max Output Power (Wmp) |
1.2W |
Max Power Voltage (Vmp) |
6V |
Max Power Current (Imp) |
200mA |
Open Circuit Voltage (Voc) |
7.2V |
Short Circuit Current (Isc) |
220mA |
Size |
109*84mm |
Thickness |
2.5mm |
Output Tolerance |
+/-5% |
Size Tolerance |
+/-0.3mm |
Operating Temperature |
-20oC to 60oC |
Life Span |
2-3 years |
Warranty |
12 months |
Standard Testing Conditions |
Irradiance 1000W/m2, Temperature 25oC, AM 1.5 |
We can Make custom mini solar panels. Please contact me freely!
