Model No.

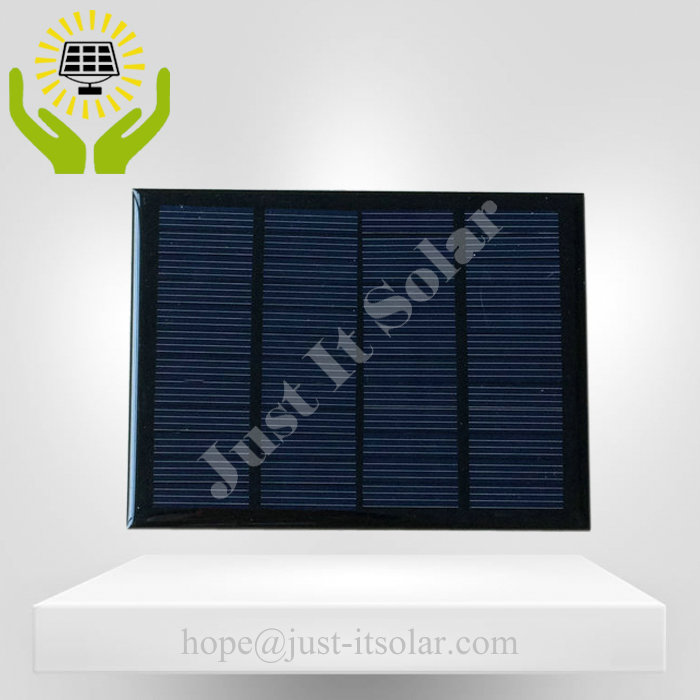

JI-12090-12V100MA

Sealing Material

Epoxy resin

Solar Cell

Polycrystalline

No. of Cells

24pcs

Max Output Power (Wmp)

1.2W

Max Power Voltage (Vmp)

12V

Max Power Current (Imp)

100mA

Open Circuit Voltage (Voc)

14.4V

Short Circuit Current (Isc)

110mA

Size

120*90mm

Thickness

2.5mm

Output Tolerance

+/-5%

Size Tolerance

+/-0.3mm

Operating Temperature

-20^oC to 60^oC

Life Span

1-2 years

Warranty

6 months

Standard Testing Conditions

Irradiance 1000W/m², Temperature 25^oC, AM 1.5
