| Max. Power: | 1W |
|---|---|
| Number of Cells: | 16pcs |
| Size: | 125*70mm |
| Material: | Monocrystalline Silicon |
| Brand Name: | JUST IT SOLAR |
Quick Details
Specifications

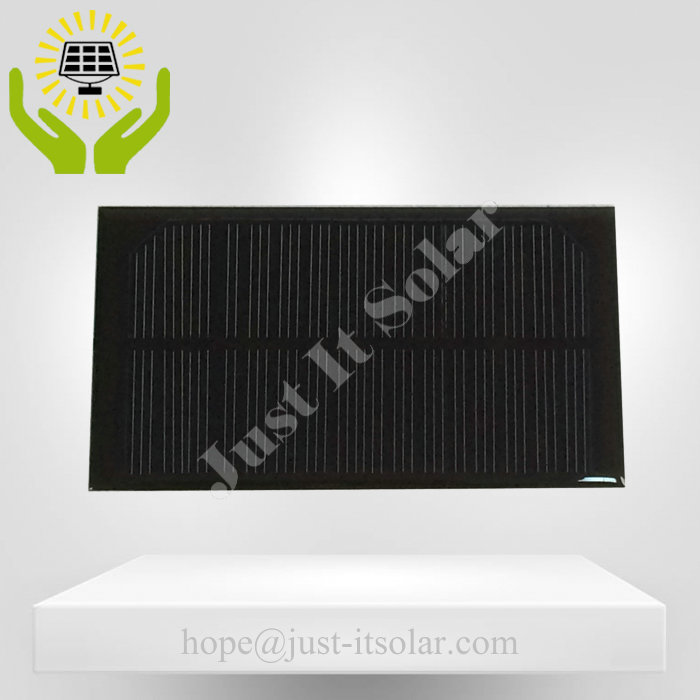

8V 1W 125*70mm Small Epoxy Solar Cell
Model No. |
JI-12570-8V1W |
Sealing Material |
Epoxy resin |
Solar Cell |
Polycrystalline |
No. of Cells |
16pcs |
Max Output Power (Wmp) |
1W |
Max Power Voltage (Vmp) |
8V |
Max Power Current (Imp) |
125mA |
Open Circuit Voltage (Voc) |
9.6V |
Short Circuit Current (Isc) |
135mA |
Size |
125*70mm |
Thickness |
2.5mm |
Output Tolerance |
+/-5% |
Size Tolerance |
+/-0.3mm |
Operating Temperature |
-20oC to 60oC |
Life Span |
1-2 years |
Warranty |
6 months |
Standard Testing Conditions |
Irradiance 1000W/m2, Temperature 25oC, AM 1.5 |
We can Make custom mini solar panels. Please contact me freely!
