Torque Gauges for torsion resistance of unused lamps

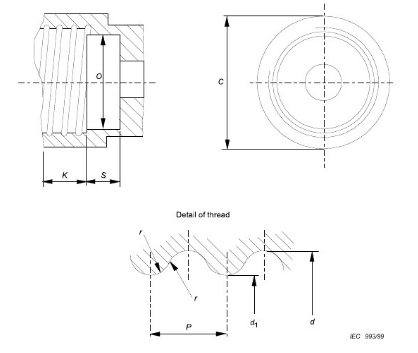

Meet the Requirements of IEC60432-1 figure C.2 and IEC60560-2 Figure 3.

Dimension	E12	E14	E17	E26 and E26d	E27	Tolerance
C	15.27	20.0	20.0	32.0	32.0	Min.
K	9.0	11.5	10.0	11.0	13.5	0.0 -0.3
O	9.5	12.0	14.0	23.0	23.0	+0.1 -0.1
S	4.0	7.0	8.0	12.0	12.0	Min.
d	11.89	13.89	16.64	26.492	26.45	-0.1 0.0
D1	10.62	12.29	15.27	24.816	24.26	+0.1 0.0
p	2.540	2.822	2.822	3.629	3.629	-
r	0.792	0.822	0.897	1.191	1.025	-
