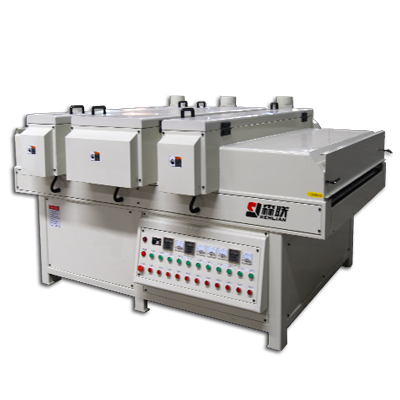

Five sides UV curing machine

Function: It applies the strong UV light to react with UV paint and curing in 3 to 5 seconds immediately, this light Reaction greatly save the drying time and the storage space without any harmful Substance volatilize.

this structure equipped with two horizontal UV lamps on Top, which the irradiation angle can be adjusted, and two vertical UV lamps beside, which the width can be adjusted from 600mm to 1300mm, and the Irradiation angle still adjustable, to ensure curing five sides of board.



·Application filed:

 Furniture, door, Wardrobe, cupboard, decoration, etc.



·Application board:

 Solid wood board, Ply, MDF, mfc, pb, marble, etc.



·Application paint:

 Mercury lamp for Clear UV, gallium lamp for color UV.

TECHNICAL PARAMETERS

Optional working width	600mm-1300mm
MAX working thickness	100mm
MIN working length	150mm
Working speed	0-25m/min
Full power(mercury lamp)	34.8kw  380V
Estimated weight	1750kg
Overall dimensions	2600*2400*1450mm

MAIN PARTS

Electric motor	UNIS
Frequency Converter	Shihlin
Conveyor	Stainless steel rollers
Voltage transformer	Copper wire and magnetic flux leakage
Electrical appliance	Chint
Optional lamp for different UV paint	UV mercury lamp, UV gallium lamp, UV iron gallium lamp

FAQ
1, Do you have any service while order your products?
----Yes, Absolutely. We also free provide whole factory layout design if you Don't know how to plan.
   Support relative cost list and suited paint recommend.

2, What size of five sides UV curing machine is right for me?
----We provide size mainly depend on the working width, standard in 600mm to 1300mm,also Manufacture customized.

3, after knowing the type, then which model is right for me?
----Each type can equip different devices for various function. Pls kindly Let me know your demands details, then I could recommend you right model with Best price.

4, May I send examples for you to show me effect?
----Our company have three labs expert for making examples, you can send us with your demands,
   we will arrange the process of making your examples, and send back to you as soon as possible.

5, What's your warranty?
----12 months.
Guarantee standard manufacture process of each machine.
12 months for products quality exclusive of consumable spare parts and man-made Damaging.

6, What's your lead time?
----Customized products in 20 to 30 working days. Spot goods in a week.

7, Can you dispatch engineer to help us installing the machines?
----Yes! We also could dispatch our engineers to help you insrtalling, testing and training.
   however, the traffic tickets, accommodation and salary will be for Your account.

8, What's your delivery term?
----Acquiescent FOB, also can be CIF/DDU/DDP to your country if you need.

9, What's your payment term?
----Acquiescent 30% T/T, 70% L/C.

10, how do you pack? Natural stone paint/water-in-water multicolor paint
---Bubble wraps and plastic film are free. Wooden case is charged if you Demands.
