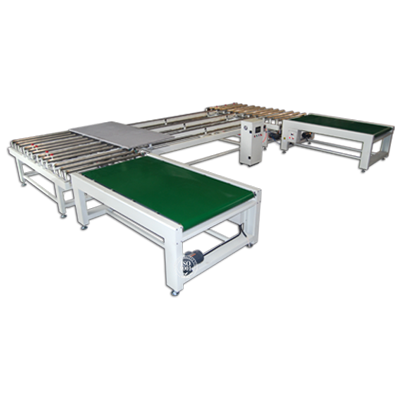

Turning and connecting conveyor

Function: It applies three rubber roller Conveyors to turn the board from one UV coating line to the other paratactic.

the one side conveyor can automatic convey and lift the Board, then pass it to the middle conveyor when they get the same level, and Pass it to the other side conveyor, then put it down and continue convey, this Group can slove the problem of space limitation.



·Application filed:

 Furniture, door, Wardrobe, cupboard, floor, decoration, building insulation, etc.



·Application board:

 Solid wood board, Ply, MDF, mfc, pb, glass, calcium silicate board, marble, etc.

TECHNICAL PARAMETERS

Optional working width	600mm - 1300mm
MIN working length	300mm
Working speed	0-25m/min
Full power	3kw  380V
Conveyor	Φ50mm
Estimated weight	1210kg/1360kg/1520kg
Overall dimensions	3800*3470*850mm 4000*3870*850mm 4870*4500*850mm

MAIN PARTS

Electric motor	UNIS
Frequency Converter	Shihlin
Conveyor	Rubber rollers and polyurethane
Electrical appliance	Chint
Control system	Board turning control system, LCD screen

FAQ
1, Do you have any service while order your products?
----Yes, Absolutely. We also free provide whole factory layout design if you Don't know how to plan.
   Support relative cost list and suited paint recommend.

2, What size of turning and connecting conveyor is right for me?
----We provide size mainly depend on the working width, standard in 600mm to 1300mm,also Manufacture customized.

3, after knowing the type, then which model is right for me?
----Each type can equip different devices for various function. Pls kindly Let me know your demands details, then I could recommend you right model with Best price.

4, May I send examples for you to show me effect?
----Our company have three labs expert for making examples, you can send us with your demands,
   we will arrange the process of making your examples, and send back to you as soon as possible.

5, What's your warranty?
----12 months.
Guarantee standard manufacture process of each machine.
12 months for products quality exclusive of consumable spare parts and man-made Damaging.

6, What's your lead time?
----Customized products in 20 to 30 working days. Spot goods in a week.

7, Can you dispatch engineer to help us installing the machines?
----Yes! We also could dispatch our engineers to help you insrtalling, testing and training.
   however, the traffic tickets, accommodation and salary will be for Your account.

8, What's your delivery term?
----Acquiescent FOB, also can be CIF/DDU/DDP to your country if you need.

9, What's your payment term?
----Acquiescent 30% T/T, 70% L/C.

10, how do you pack? Natural stone paint/water-in-water multicolor paint
---Bubble wraps and plastic film are free. Wooden case is charged if you Demands.
