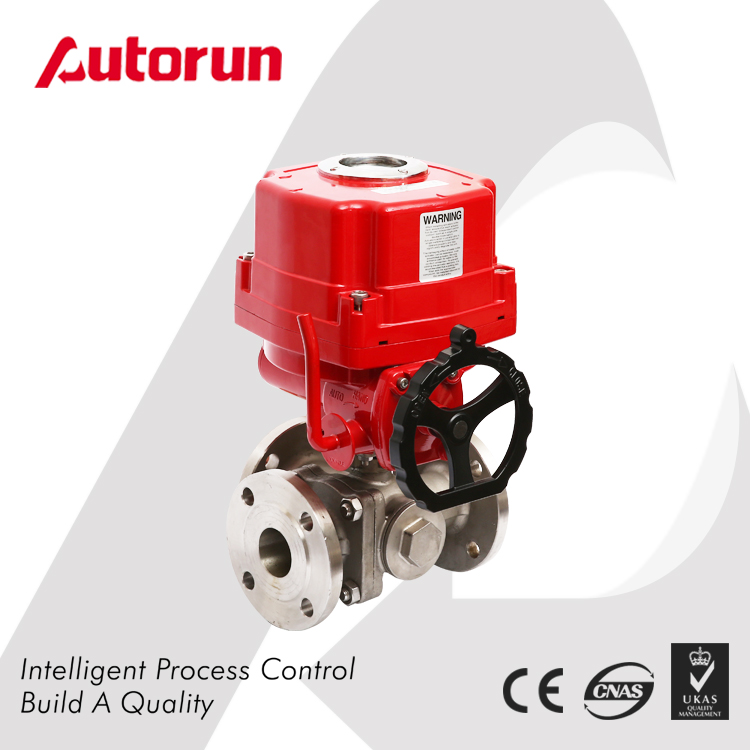

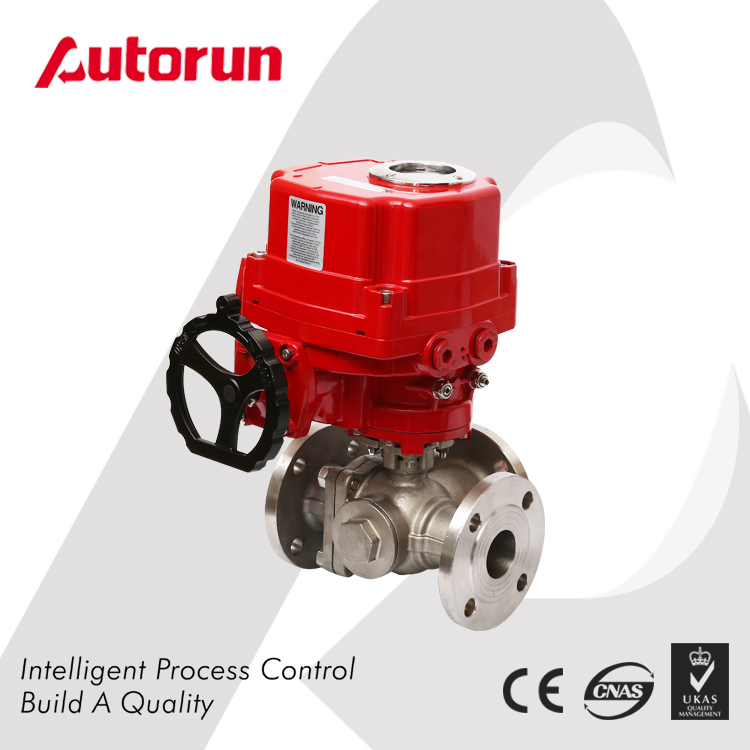

3-WAY EX ELECTRIC FLANGED BALL VALVE

Model NO.: Q944(5)F
Connection Form: Flange
Valve Body Material Available: WCB/Stainless Steel CF8/CF8m/CF3/CF3m
Seal Material Available: PTFE, Nylon, PPL, H/Y
Type: Floating Ball Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Standard Available: GB, ANSI, etc.
Actuator Voltage: 380V/220V/110V AC or 24V/110V DC

Valve Range:  Size 1/2-8Inch (DN15-DN200), Rating Class 150-600Lb (PN16-PN100)
Valve Applications:  Oil Industry, Chemical, Power Station, Refinery, Paper Making, Aviation,Other
Design Standard: ASME B16.34, MSS-SP-72, API 608, ISO17292, DIN, Other
Face-to-Face Standard:  Manufacturer's STD, Other
Ends Connection Standard: Flange per ASME B16.5, BW per ASME B16.25, Other
Testing Standard: API 598, API6D Other
Fire-Safe Design: API 607/6FA
Type of Bore:  Full Bore, Reduced Bore, Other
Valve Material: Cast Steel, Forged Steel, Stainless Steel
Valve Operation: Lever, Gear Worm, Electric, Pneumatic, Other
Connection Type:  FF,  RF,  RTJ,  BW
Ball Type:  Floating Ball
Construction Type: Three-Way, Cryogenic
Stem Type: Extended
Sealing Type: Soft Sealing
Body-Bonnet Connection Type: Bolted Bonnet,  Extended Bonnet
