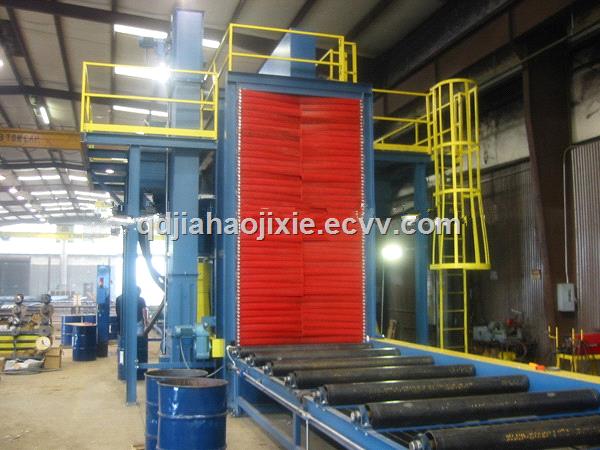

Q69 Series Steel Plate Surface shot blasting machine
1. Steel plate shot blasting machine has three kinds of pass through type:
Roller conveying pass through, trolley pass through, hanger pass through.
2. They are widely used in the industry of steel plate, steel structure, engineering machinery, bridge building and so on. by shot blasting, it can remove rust, oxide layers, welding slag and other pollutant and eliminate surface stress force.
3. after shot blasting, it can improve paint film adhesion with steel, improve anti-rust capacity, improve the quality and prolong the service life of steel structure.
4. the steel shots blasted by blasting turbines will be collected, purifying by shots circle system and continue to be used again for blasting turbines.
5. the working process flow of shots circle system: steel shots blasted by blasting turbines will be collected by portrait screw conveyor and delivered to bucket elevator then the bucket elevator will lift to air wash type separator.
6. after separating, the dust and broken steel shots will be removed away from steel shots and good steel shots will enter storage bin.
Advantages:
1. Wide application, Easy to install and use.
2. Customized, Meet your needs.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
4. Exquisite appearance (mature craft).
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
7. Factory direct selling with competitive price.
8. over 10 years' production experience.
9. Professional design team to serve you.
10. Mainly electrical control system adoptsinternational brand.
11. CE certificate assure you our quality.

Machine details:



Type	Q6910	Q6920	Q6925	Q6930	Q6940	Q6950
Workpiece Size	1200×1000 (Length)(Width) Thickness 6-60(Steel) Steel Height 500	1200×2000	1200×2500	1200×3000	1200×4000	1200×5000
		6-60	6-25	6-60	6-60	6-60
		400	400	400	400	400
Roller Speed (m/min)	1-5 (Frequency Control)	1-5 (Frequency Control)	1-5 (Frequency Control)	1-5 (Frequency Control)	1-5 (Frequency Control)	1-5 (Frequency Control)
Length of Inlet Roller (mm)	12000	12000	12000	12000	12000	12000
Effective Work Width (mm)	1300	2300	2800	3300	4300	5300
Length of Outlet Roller (mm)	12000	12000	12000	12000	12000	12000
Power of Dust Blower (kw)	15	18.5	22	37	45	55
Power of Blasting   (kw)	11*4	15*6	18.5*6	22*8	22*10	30*10

1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
Customer  pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion,  but no more than 18 months from date of delivery.
3. Supply full English documents:
Including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
