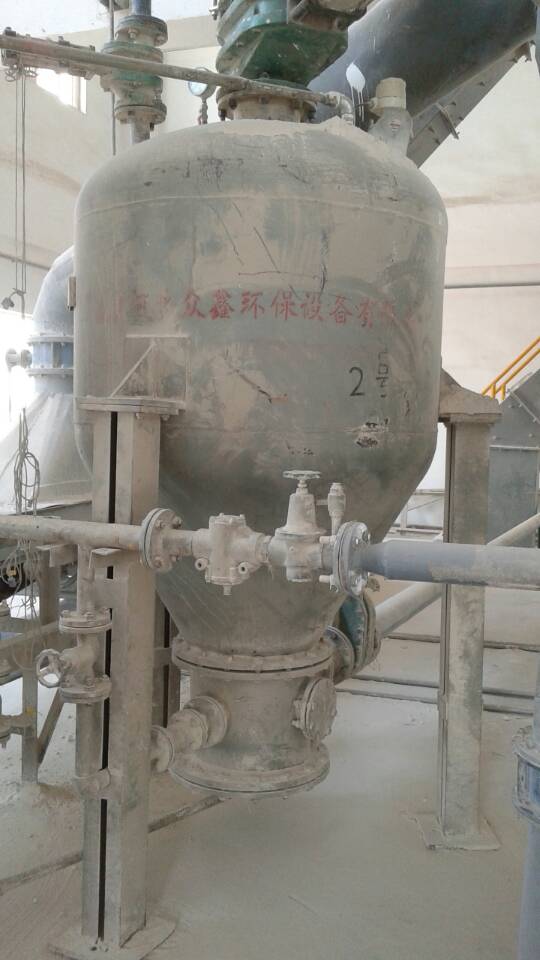

Brief introduction of fly ash handling system:

 1.Pneumatic conveyors are much better suited to powder handling than mechanical conveyors because the conveyance channels used in pneumatic conveyors are completely enclosed.

2.Pneumatic conveyors are used for materials handling and transportation in a wide range of industries. Unlike many mechanical conveyor designs, pneumatic conveyors can be designed to move products between floor levels and around difficult angles.

3. the whole system is composed of compressed air source,storage pump,control cabinet,conveying pipe and ash storage.

4.this system are suit for variety material transportation,eg:fly ash,kiln dust, cement, etc dry powder material(moisture content <5%).
    Dense Phase Pneumatic Conveying System uses air or gas as the medium to transfer the bulk materials from position A to position B. these materials are dry pulverized or free flowing or light powdery materials like cement, fly ash etc. They can be transported conveniently to various destinations by means of a stream of high velocity air through pipe lines.
   Dense Phase Pneumatic Conveying System can be used depending on which powder materials are handled, what distance has to be covered and what throughput has to be achieved.

Parameters	LD0.6	LD1.0	LD1.5	LD2.0
Body Inner Diam.(mm)	800	1000	1200	1400
TOtal volume(M^3)	0.6	1.0	1.5	2.0
Body materail	Q235-B
Operation Temp.(℃)	≤120
(Mpa)	0.78
Operation Pressure(Mpa)	0.2-0.5(Basis on the conveying disance)
Max. Conveying distance(m)	<1000
Outlet conveying Diam	DN80	DN100
AirConsumption (m^3/min)	3.5-7	5-10
