Quick Details

Shank Diameter:	1.2mm-6mm
Length:	1''-6''
Material:	Iron
Type:	Decorative Nail
Brand Name:	Jabosen
Standard:	DIN
Head Diameter:	2.7-13.2mm
Model Number:	JBH025
Place of Origin:	China (Mainland)

Specifications

Product Description

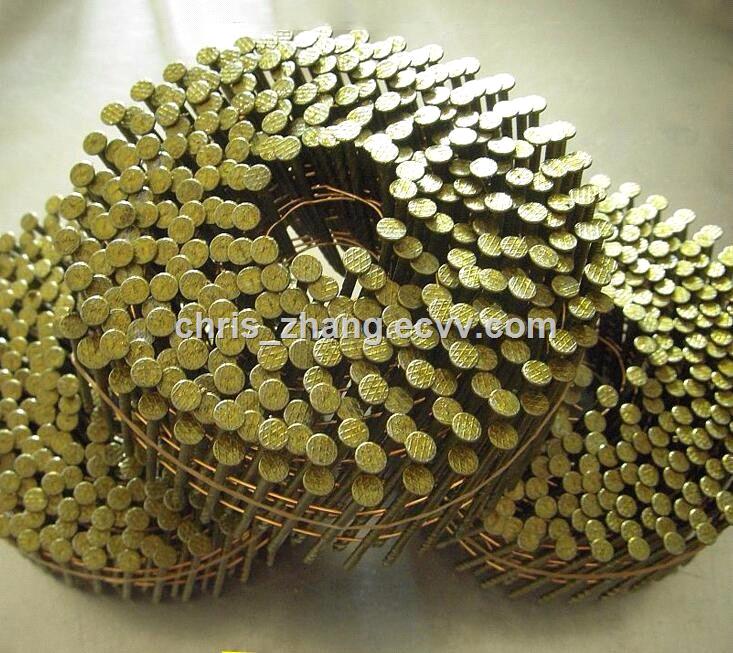

High Quality Coil Nail/Pallet Coil Nail is widely used in production paint grade siding or fence picket applications.

Our factory provides all kind of coin nails, such as Pallet Coil Nail, Galvanized Roofing Coil Nail etc.

Technical Parameters

Diameter(length) Shank diameter Expansile diameter Head diameter Head thickness First welding position Second welding position Inside Coil Diameter

2.1(25-38mm) 2.1+/-0.02-0.05mm 2.1+0.15-0.3mm 5.0mm 0.8mm 8mm 19mm 25mm

2.1(45-50mm) 2.1+/-0.02-0.05mm 2.1+0.15-0.3mm 5.0mm 0.8mm 19mm 37mm 32mm

2.3x38mm 2.3+/-0.02-0.05mm 2.3+0.15-0.3mm 5.5mm 0.8mm 8mm 19mm 32mm

2.2-2.3(45-60mm) 2.3+/-0.02-0.05mm 2.3+0.15-0.3mm 5.5mm 0.8mm 19mm 37mm 32mm

2.5(35-38mm) 2.5+/-0.02-0.05mm 2.5+0.15-0.3mm 6.0mm 1.0mm 8mm 19mm 32mm

2.4-2.5(50-75mm) 2.5+/-0.02-0.05mm 2.5+0.15-0.3mm 6.0mm 1.0mm 19mm 37mm 32mm

2.7-2.9(50-83mm) 2.7+/-0.02-0.05mm 2.7+0.15-0.3mm 7.1mm 1.0-1.1mm 19mm 37mm 32mm

3.0-3.1(80-90mm) 3.0+/-0.02-0.05mm 3.0+0.15-0.3mm 7.4mm 1.3mm 19mm 37mm 32mm

3.1x100mm 3.1+/-0.02-0.05mm 3.1+0.15-0.3mm 7.4mm 1.3mm 19mm 52mm 32mm

Diameter(length)	Shank diameter	Expansile diameter	Head diameter	Head thickness	First welding position	Second welding position	Inside Coil Diameter

2.1(25-38mm)	2.1+/-0.02-0.05mm	2.1+0.15-0.3mm	5.0mm	0.8mm	8mm	19mm	25mm

2.1(45-50mm)	2.1+/-0.02-0.05mm	2.1+0.15-0.3mm	5.0mm	0.8mm	19mm	37mm	32mm

2.3x38mm	2.3+/-0.02-0.05mm	2.3+0.15-0.3mm	5.5mm	0.8mm	8mm	19mm	32mm

2.2-2.3(45-60mm)	2.3+/-0.02-0.05mm	2.3+0.15-0.3mm	5.5mm	0.8mm	19mm	37mm	32mm

2.5(35-38mm)	2.5+/-0.02-0.05mm	2.5+0.15-0.3mm	6.0mm	1.0mm	8mm	19mm	32mm

2.4-2.5(50-75mm)	2.5+/-0.02-0.05mm	2.5+0.15-0.3mm	6.0mm	1.0mm	19mm	37mm	32mm

2.7-2.9(50-83mm)	2.7+/-0.02-0.05mm	2.7+0.15-0.3mm	7.1mm	1.0-1.1mm	19mm	37mm	32mm

3.0-3.1(80-90mm)	3.0+/-0.02-0.05mm	3.0+0.15-0.3mm	7.4mm	1.3mm	19mm	37mm	32mm

3.1x100mm	3.1+/-0.02-0.05mm	3.1+0.15-0.3mm	7.4mm	1.3mm	19mm	52mm	32mm
