Product Main Functions

1) Equipped with " Four-Axis Linkage Control" intersection NC system, and the 10.4 inch color display, Fit for pipe cutting with beveling.

2) Standard version can both flame cutting and plasma cutting.

3) Using servo motor drive technology, the motors get more power but less noisy.

4) Can make intersecting pipe hole cutting in different directions and different diameters. Can make branch pipe and main pipe vertical or cross in some angle.

5) Can cut oblique section of the pipe.

6) Can cut branch intersecting pipe's end socket for main pipe.

7) Can cut square and slotted hole and all shapes on the pipe.

8) Can cut off the pipe.

9) Can cut dual bending ends for bending of the pipe after welding.

Applications

1.Applies to all kinds channel, beam, angle, ball flat steel, square pipe and rectangular pipe etc.

2.Especially for steel construction, shipbuilding, marine engineering, the elevator industry, building walls, bridges, towers and mechanical engineering industries.

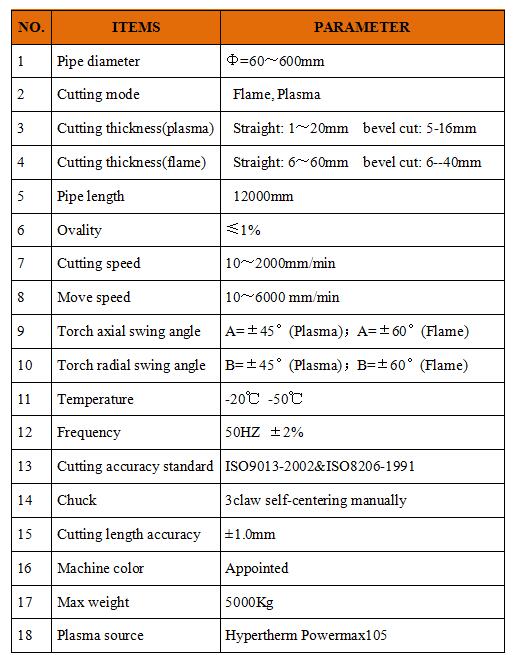

Technical Parameters
