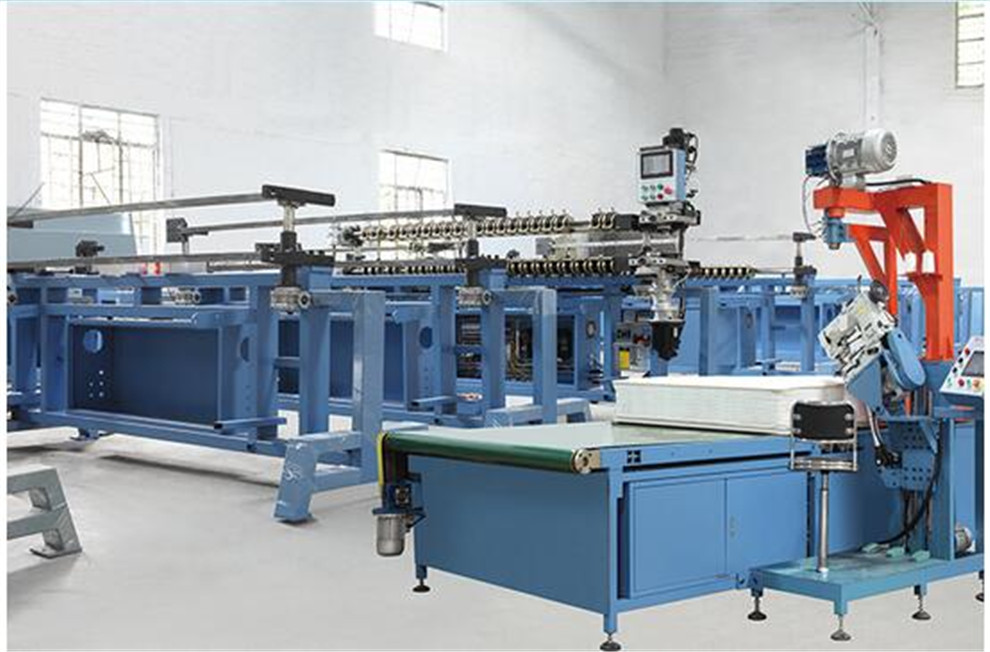

this equipment is mainly used for mattress, the next material and the side edge of the material sewing. the product is characterized by: head fixed, can be raised to meet the different height of the mattress, and adjust the nose tilt. In the sewing product by the table conveyor conveyor mattress to move the seam, sewing finished one side can automatically turn the mattress 90 ° sewing the other side, in the process of turning the mattress angle to complete the side seam, sewing after the mattress side of the mattress can be turned by the machine. The operation of the machine can be completed by one person, the operator does not need to move around the mattress, without turning the mattress, which can improve work efficiency and reduce labor intensity.



Thickness: (60-350) mm / (150-430) mm
Lifting range: (125-450) mm
Power: 3-Phase, 380V 50Hz
Worktable size: 2000 × 3950 × 900mm
Maximum size of the machine: 2380 × 1830 × 1650mm
Working pressure: (0.7-1.0) Mpa
Total power: 3w
Total weight: 1300Kg
Production efficiency: 18 units / h
