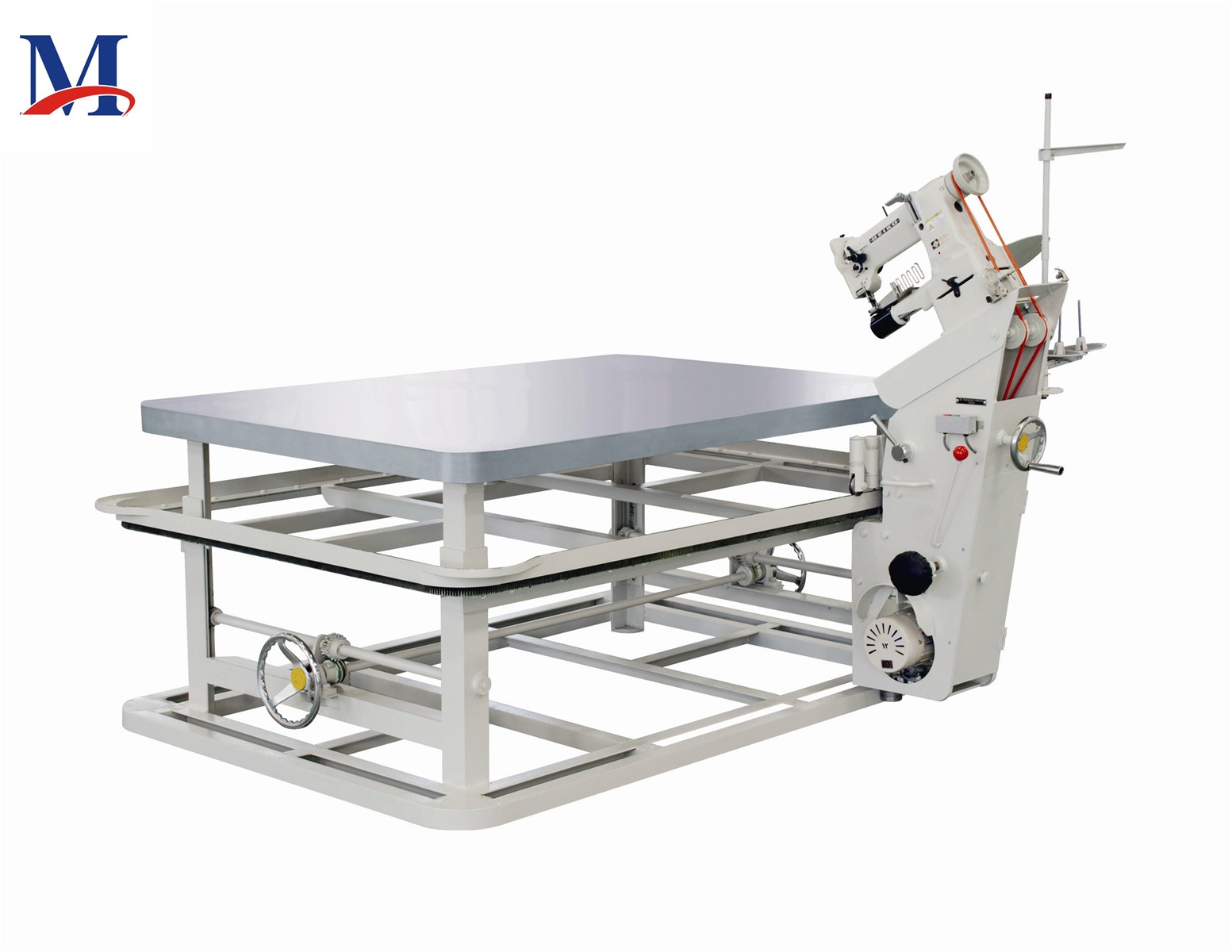

the equipment is mainly used for spring mattresses, the lower edge of the material and the side edge of the material between the edge, but also for other cushion bed sleeping bags.

the device has the following characteristics:
1: According to customer requirements, the use of imported or domestic head;
2: manual manual lifting, nose tilt manual adjustment;
3: sewing, carriage driving manual speed, turning position using manual deceleration;
4: suture straight straight, beautiful;
5: stable operation, small vibration, low noise.


Thickness: (40-300) mm
Worktable lifting range: 260mm
Sewing the maximum inclination: 40 °
Power: Single-Phase, 220V 50Hz
Worktable size: 1930 × 1300mm
Dimensions: 2130 × 2010 × 1565mm
Total power: 400w
Total weight: 464Kg
Production efficiency: 15 units / h
