| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 years |
| Brand Name: | SN |
| Machine Type: | Engraving Machine / CNC Router |
| Condition: | New |
| Weight: | 4200KG |
| Dimension(L*W*H): | 4700X2450X2600mm |
| Power(W): | 16000 |
| Voltage: | 380V/220V 50hz |
| Model Number: | SN2400G |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1.Brief Introduction:

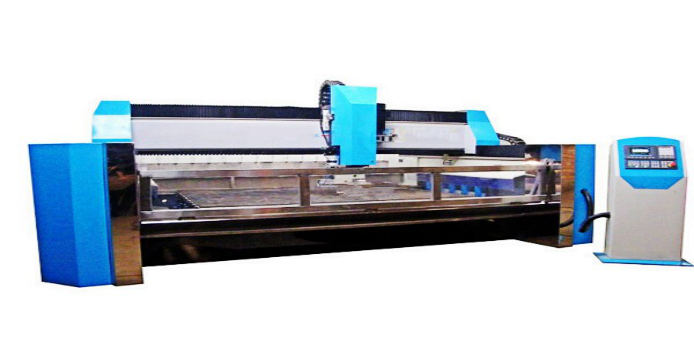

SN2412 CNC glass engraving machine is a fully automatic glass processing equipment.from CAD drawing conversion to Platinum glass special glass engraving software,setup parameters,automatic identification of paths, generated code, grooving,ATC,polished, full time automatically.
2.Techincal parameters:
Stroke of Axis x, y, z:2500X1450X155mm
Axis C Speed:20m/min
Main Axis Speed:135-6000/min
Max Width of Slot:40mm
Main Spindle Power:5.5kW
Quantity of Knives:1*4pcs
Processing Glass thickness:3-40mm
Processing Max Glass size:2400X1200mm
Processing Min Glass size:120x120mm
Total Power:16kW
Weight:4200kg
