| Usage: | roughness testing machine |
|---|---|
| Power: | Electronic |
| Brand Name: | IPRE |
| Warranty: | 1 year |
| weight: | 150g |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

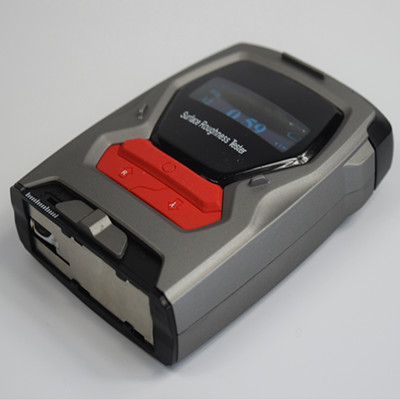

Portable roughness tester PRSR210
Features
Dual OLED displays to suit your applications
2 start keys ( the left key & the right key) to satisfy the different using habits
Mobile app compatible to get the higher accuracy, convenient to be used in a small space
ARM processor to offer higher speed, low power consumption and fast accurate measurement
Light weight of 150g, easy & convenient to use
Main Technical Specificitions
Optional Parameter |
Ra, Rz, Rq, Rt |
Measuring Range(μm) |
Ra, Rq: 0.05 ~ 10.0;Rz, Rt: 0.1 ~ 50 |
Sampling Length(mm) |
0.25/ 0.80/ 2.5 |
Evaluation Length(mm) |
1.25/ 4.0/ 5.0 |
Running Length(mm) |
6 |
Display Accuracy |
0.01μm |
Display Deviation |
±(7-10)% |
Display Repeatability |
＜12% |
Stylus Radius |
10 μm±1 μm |
Static Contact Force |
≤ 0.016N |
Force Change Rate |
≤ 800N/m |
Sensor Lead Pressure |
≤ 0.5N |
Battery |
3.7V Lithium Rechargeable battery |
Dimensions in mm |
110×81×32 |
Weight |
150g |
