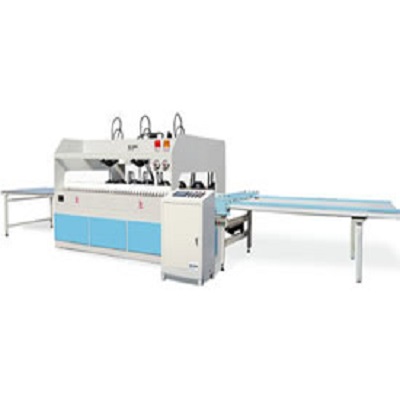

High Frequency Wood Board Joining Machine from SAGA Factory combines high frequency dielectric heating with 2 directions pressure,is suitable for finger joint or edge glued board jointing or gluing the rim of solid door or other wood block gluing.
Main Features:
1.PLC automatic control with auto feeding cart.
2.Electro components mostly use European brand, like Schneider, Siemens, Omron to enable stable working.
3.Strict control and regulation on mechanical spare parts like hydraulic, other parts all use internation standard.

SPECIFICATION of HIGH FREQUENCY WOOD BOARD JOINING
Model	SP20-SA	SP30-SA
HF Input Power	30KVA	40KVA
HF Output Power	20KW	30KW
Standard Working Size	1220*2440mm	1220*2440mm
Gluing Thickness	5~100mm	5~100mm
Horizontal Pressure	Cylinder Diameter:50 mm	Cylinder Diameter:50 mm
	Cylinder No.:12 pcs	Cylinder No.:12 pcs
	Total Pressure: 36 ton	Total Pressure: 36 ton
Vertical Pressure	Cylinder Diameter:50 mm	Cylinder Diameter:50 mm
	Cylinder No.:3 pcs	Cylinder No.:3 pcs
	Total Pressure: 9 ton	Total Pressure: 9 ton
Dimension of Main Press	L:2700mm, W:2100mm, H:2200mm	L:2700mm, W:2100mm, H:2200mm
Weight	5800kgs	6500kgs


Application Case
Standard working size is 1220*2440mm, gluing thickness is 8~100mm, 6~7mm hard wood board can be made.
3000mm, 35000mm, 4000mm, 4880mm,5000mm and 6000mm is optial, can be customized as customer's requirement.
Heating time for standard size wood board is 2~3 mninutes.
