| After-sales Service Provided: | Overseas service center available |
|---|---|
| Brand Name: | SAGA |
| Condition: | New |
| Certification: | CSA |
| Voltage: | 11 Kw |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

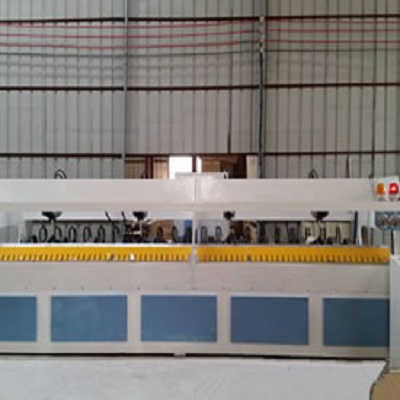

High frequency clamp carrier combines high frequency dielectric heating with 2 directions press, is suitable for finger joint or edge glued board jointing or gluing the rim of solid door or other wooden block gluing.
Main Features
1.PLC automatic control with auto feeding cart.
2.Electro components mostly use European brand like Schneider,Siemens,Omron to enable stable working.
3.Strict control and regulation on mechanical spare like hydraulic, other spare parts all use international standard.
Main Features
1.PLC automatic control with auto feeding cart.
2.Electro components mostly use European brand like Schneider,Siemens,Omron to enable stable working.
3.Strict control and regulation on mechanical spare like hydraulic, other spare parts all use international standard.
| SPECIFICATION for HIGH FREQUENCY CLAMP CARRIER | |||
| Model | SP30L-SA | ||
| Input Power | 3Phase-380V-40KVA | ||
| Output Power | 30KW | ||
| Gluing Size | 1220(W)*4800(L) | ||
| Gluing Thickness | 8mm~100mm | ||
| Horizontal Pressure | Cylinder Diameter | 50mm | |
| Number of Cylinders | 21PCS | ||
| Total Pressure | 63T | ||
| Vertical Pressure | Cylinder Diameter | 50mm | |
| NO. of Cylinders | 4PCS | ||
| Total Pressure | 12T | ||
| Dimensions | L:5700mm,W:2100mm,H:2200mm | ||
| Gross Weight | 7800KGS | ||
