| Use: | Well Drilling |
|---|---|
| Material: | Cobalt Steel Alloys |
| Type: | Core Drill Bit |
| Brand Name: | Keruite |
| Color: | blue and yellow |
| Model Number: | 98 mm tricone drill bit |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1,Standard: API & ISO
2,Technical datas:
| Model name | TCI bit:98mm IADC 537 |
| Material | 15GrNi4Mo / 20GrNiMo |
| Cutting element | Hard alloy cutting tooth |
| Size | 98mm |
| IADC CODE | 517/537 |
| Bearing type | Rubber sealed bearing type |
| Thread connection | 2 3/8 |
| WOB(KN/MM) | 0.50- 1.05 |
| RPM (R/MIN) | 110-40 |
| Applicable formations | Low compressive strength,soft,and have a hard Abrasive sandwich,such as hard shale.Anhydrite,soft limestone, sandstone,hamsandwich dolomite, etc |
| Nozzles | 1 pcs |
| G.W(gross weight KG) | 8KG |
| Packing | Wooden case for export oras your order |

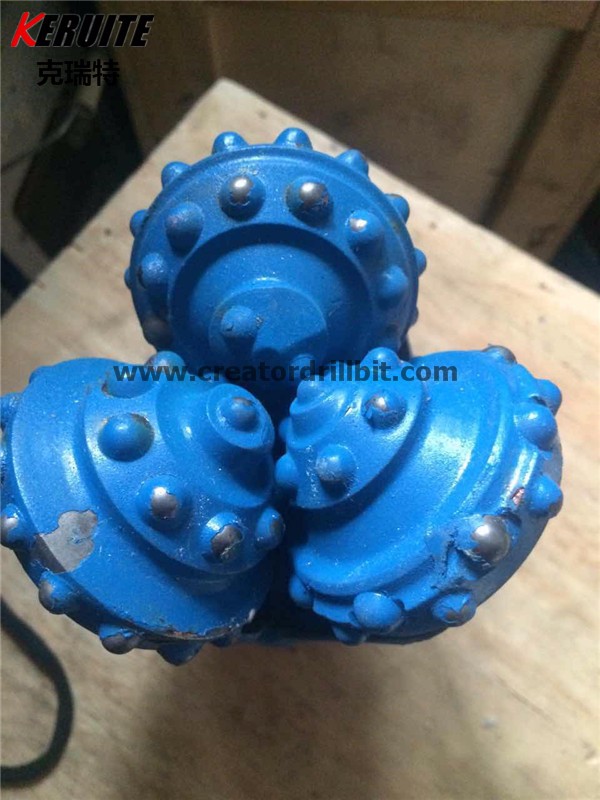

3, Bits detail pictures:
Packaging & Shipping

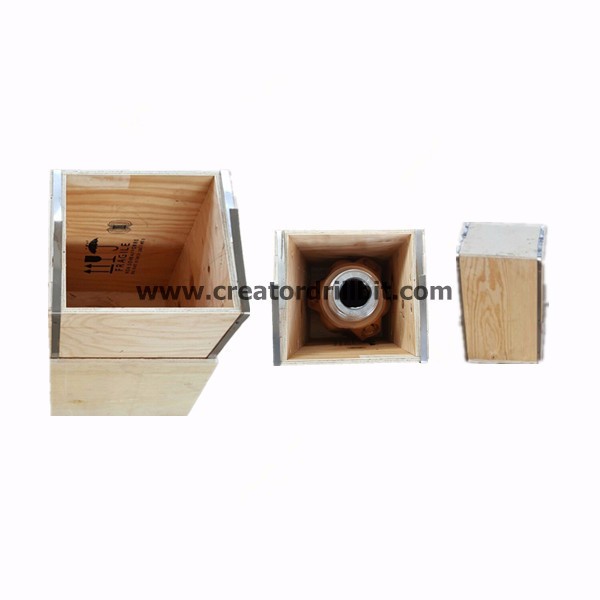

4,Packing information:
Wooden box or steel box for export, or as customer ordered.
5,Shipping information:
1) 1-30KG by international express (EMS,DHL and so on )
2) heavey than 45KG by air (by plane )
3)last can by shipping,by sea more cheaper but need more time.
Company Information
Cangzhou solid Drilling equipment Co.,Ltd is a manufacture factory, mainer in development and production of the specifications of the same soil trenchless drilling tools, including: tricone bit,PDC bit, guide bit and transfer, tube type reamer, port type reamer, the board type reamer, adaptor, etc, Used in oil fields, mines, geological prospecting, hydrologic exploration, engineering pile, geothermal development, Wells, etc. big size bits can be ordred.
