| Part: | |
|---|---|
| Brand Name: | lange |
| Material: | cast iron |
| size: | 2.5m |
| Diameter: | 2.5m |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
|

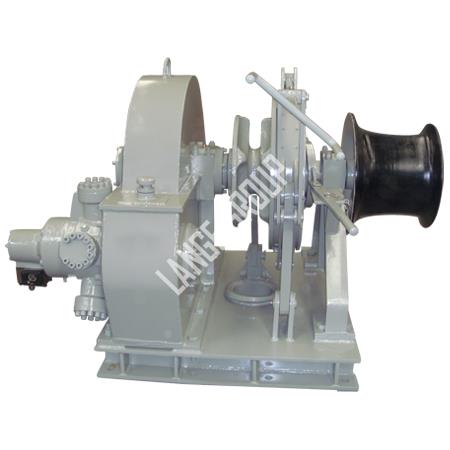

Single Anchor Windlass |
|||||
|
Model |
Chain Diameter |
Working Load |
Holding Load |
Speed |
Warping Load |
|
MDEE020-SW001 |
12.5/14/16/17.5 |
5.9/8.3/10.9/13 |
30/51/67/80 |
9 |
8KN |
|
MDEE020-SW002 |
19/20.5/22/24/26 |
15.3/17.9/20.6/24.5/28.4 |
95/110/126/149/175 |
9 |
10-20KN |
|
MDEE020-SW003 |
28/30/32/34/36 |
33.3/38.3/43.5/49.1/55.1 |
202/231/261/294/329 |
9 |
30KN |
|
MDEE020-SW004 |
38/40/42 |
61.4/68/75 |
365/402/442 |
9 |
40KN |
|
MDEE020-SW005 |
44/46/48 |
82.3/89.9/97.9 |
483/526/570 |
9 |
50KN |
|
MDEE020-SW006 |
50/52/54 |
106.3/114.9/123.9 |
617/664/713 |
9 |
50KN |
|
MDEE020-SW007 |
56/58/60 |
133.3/143/153 |
764/816/870 |
9 |
60KN |
|
MDEE020-SW008 |
62/64/66/68 |
163.4/174.1/185.1/196.5 |
925/982/1040/1098 |
9 |
80-100KN |
|
MDEE020-SW009 |
70/73/76/78 |
208.3/226.5/245.5/258.6 |
1160/1254/1350/1416 |
9 |
100-125KN |
| Note: Specific technical parameters take techinical specifications and drawings as standard. | |||||
|
Description:
Driven Mode: Hydraulic or Electric Configuration: Single or Double Gypsies, with/without warping head, with/without wire drum. Brake/Clutch: Manual/Hydraulic Operated. Control: Local/Remote Certification: ABS, GL, LR, BV, CCS, RMS,DNV, NK, ETC. The windlass range we can supply is from 12.5mm to 130mm, the above is some sample. Our windlass is tailored to customers' taste. |
|||||
