| Brand Name: | HOLYKELL |
|---|---|
| Output: | 4-20mA(2 wires)/0-5V/0-10V/0.5-4.5V |
| Accuracy: | 150% F.S. |
| Power Supply: | 12-36VDC/24VDC/5V |
| Range: | -1..0-1..600 bar |
| Model Number: | Pressure Transmitter |
| Place of Origin: | China (Mainland) |
| Electronic connection: | Hirschman connector |
| Net Weight: | 0.25KG |
Quick Details
Specifications
China supplier 4-20ma Pressure Transmitter Price Model:HPT300-S

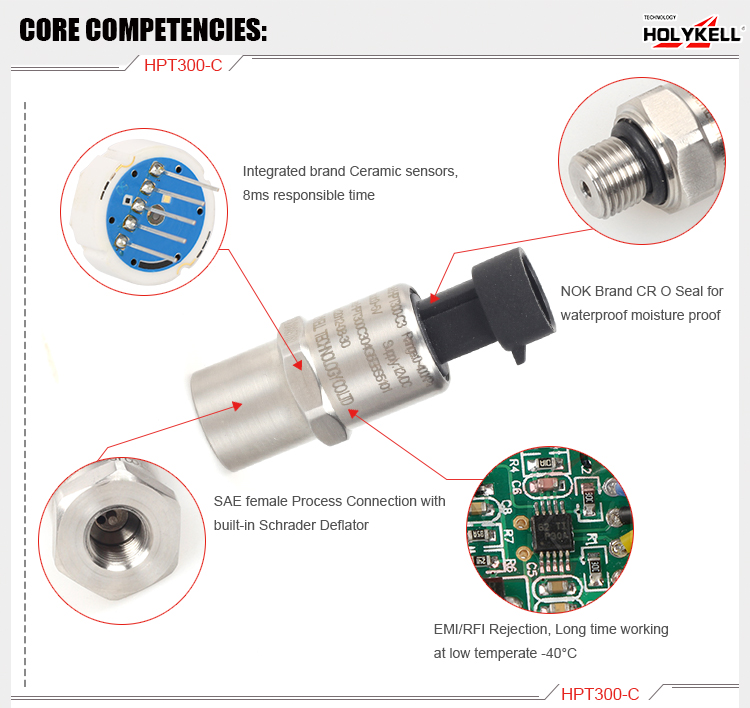

WHy Choose Our OEM Compact Pressure Transducer?
TECHNICAL PARAMETER
Pressure Range |
-1-0-1 Bar.....600 Bar Optional | ||||
Accuracy |
≤ ±1.0%F.S ≤ ±0.5%F.S ≤ ±0.25%F.S (Customized) | ||||
Diaphragm material |
Piezoresistive Flush Ceramic | ||||
Electronic Wire |
2 Wires |
3 Wires | |||
Output |
4~20mA |
0~5V |
0~10 V |
0.5~4.5 V |
by Customized |
Power Supply |
12~36 V DC |
12~36 V DC |
15~36Vdc |
5 V DC |
by Customized |
Insulate resistance |
>100M Ω @50V | ||||
Electronic connection |
Terminal Box (DIN43650 Hirschman Connector, IP65) Directly sealed cable IP67; M12 4 Pins connector IP65; Small Hirschman Connector; connection are optional. | ||||
Pressure connect port |
1/8''NPT male, 1/4''NPT male 1/4''NPT Female, G1/2'' male, G1/4''male/female, 7/16''-20 UNF male/female are optional. (by Customized) | ||||
Response time |
≤10ms | ||||
Certificate approving |
CE Certificate. | ||||
EMC Standard |
Electromagnetic radiation:EN50081-1/-2 Electromagnetic susceptibility:EN50082-2 | ||||
Water Proof |
IP65 to IP67 | ||||
Weight |
Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable) | ||||
Order information: Pressure range:0-10 bar , Output:4-20mA , Power supply:12~36VDC ,
Process connection: 1/8"NPT male ,Electronic Connector:Directly cable
