| Type: | Other |
|---|---|
| Brand Name: | Hellobaler |
| Packaging Material: | Paper,Cardboardetc, |
| Packaging Type: | Bale |
| Application: | Paper mill/rececycling center |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 1600*1100*1250 |
| Weight: | 33T |
| Model Number: | HFA20-25 |
| Place of Origin: | China (Mainland) |
| Power: | 45*3sets+5.5+11 |
| Voltage: | 220V |
| Driven Type: | Hydraulic |
| Automatic Grade: | Automatic |
| PLC & Touching Screen: | Simens |
| Cooling System: | Yes |
| Counting Wheel: | Yes |
| Conveyor: | Yes |
Quick Details
Specifications
Horizontal Automatic Paper Cardboard Baler machine Usage:
Waste Paper, Cardboard, Carton, Corrugated box, etc.

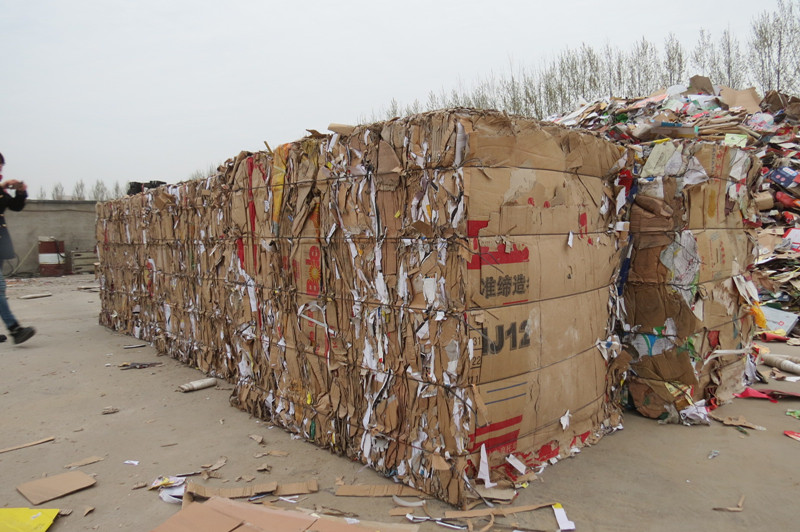

Semi-automatic Baler offer the best solution to meet your high capacity baling requirement, the capacity of our Semi-automatic Baler is up to 10t/h. with the automatic wire tier, our Semi-automatic Baler can save your time and labor immensely.the bale effect

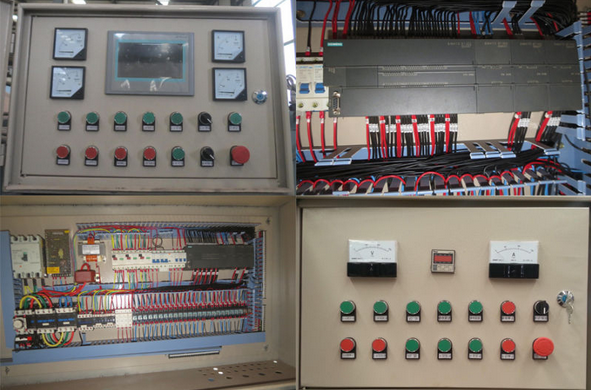

2.Our Control System is Simens PLC, the machine is controlled automatic, one person can operate the machine.
Waste Paper, Cardboard, Carton, Corrugated box, etc.
Semi-automatic Baler offer the best solution to meet your high capacity baling requirement, the capacity of our Semi-automatic Baler is up to 10t/h. with the automatic wire tier, our Semi-automatic Baler can save your time and labor immensely.the bale effect
Features:
1.We use the good quality material, the promise 10 years using time.
2.Our Control System is Simens PLC, the machine is controlled automatic, one person can operate the machine.
3.Feed system has Photoelectric switch, when the material is enough, the conveyor stops, the push car begins work.
4.Durable clamping sylinders and screw increase bales density.
5.Saw tooth design reduces hydraulic shock and materials jams.
6.Counter wheel counts the rated lengh of the bales automatically.
7.Two efficiency motors and pumps available.
8.Water cooling system: use water to to protect the cylinder from high oil temprature, and the water will not blow the dust into machine.
9.Simple and durable counting system: There is a count wheel on the baler, counting the bale lengh automatically as setting.
10.Safety design: Equipped with emergency button and safety door, only with the safety door closed, the baler can work, the machine has also the emergncy button, stopping the machine immediately.
Specifications:
HFA Series Automatic Balers (high capacity series)
| Model/Data | HFA13-20 | HFA10-14 | |
| Bale size (L×W×H) |
mm | 1600×1100×1250 Length is adjustable |
1600×1100×850 Length is adjustable |
| Cylinder | Φ280 | Φ250 | |
| Pressing Force | KN | 1200 | 1000 |
| Cycle Time | s | 24 | 24 |
| Density | Kg/m 3 | 450-500 | 500-550 |
| Bale Weight | Kg/bale | 900-1000 | 750±50 |
| Capacity | t/h | 13-20 | 10-14 |
| Feed Opening | mm | 2000×1100 | 2000×1100 |
| Wire | Line | 5 | 4 |
| Power | KW | 45×2sets+5.5+7.5 | 37×2sets+5.5+7.5 |
| Machine Weight | T | 28 | 25 |
| Materials | Waste paper, Cardboard, Newspaper, Magazine, Tissue, Plastic, etc. | ||
