Quick Details

Type: Rotogravure Printing Machine
After-sales Service Provided: Engineers available to service machinery overseas
Automatic Grade: Automatic
Brand Name: senchuang machine
Condition: New
Type: ASY-6800
Warranty: 1 year
Certification: CE
Weight: 23 tons
Dimensions(L*W*H): 16200*2500*2600mm
Gross Power: 70kw
Voltage: 380v
Color & Page: Multicolor
Usage: Cloths Printer,film
Model Number: ASY-6800
Place of Origin: China (Mainland)

Specifications

Characteristic:

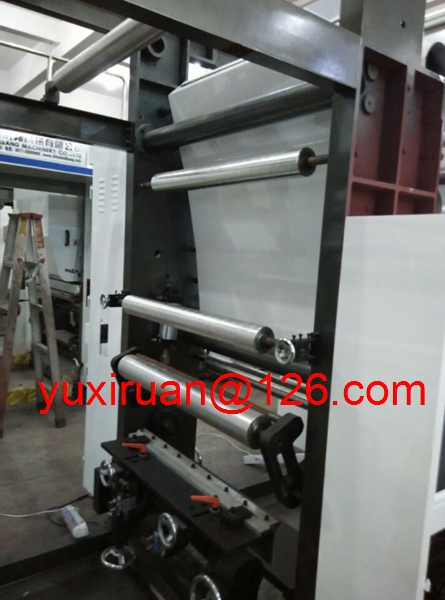

High Speed CPP PVC Rotogravure Printing Machine with PLC System

1 this machine is suitable for printing BOPP, PET, PE, PVC, CPP, cellophane, paper and aluminum foil, and so on, which have good printing performance

2 this machine adopts the seven motor tension control and PLC tension system, and the tension is detected and adjusted
3 roll up and roll double arm mechanism, high speed without changing the volume
4 do not stop automatic cutting, material (such as BOPP, PET, CPP, and about 120 grams of paper)
5 pneumatic scraper, three position adjustment, the scraper move left and right by the synchronous motor drive
6 traction pressure roller, printing roller are pneumatic
7 pneumatic shaftless mounting mechanism to improve the efficiency
8 automatic ink circulation system

9 automatic computer color system, with a static screen



Main technical parameters:
Model ASY-600A ASY-800A ASY-1000A ASY-1200A
Printing chromatic number 8 8 8 8
Plate diameter 120-300mm 120-300mm 120-300mm 120-300mm
Printing width
600mm 800mm 1000mm 1200mm
Unwinding diameter 600mm 600mm 600mm 600mm
Winding diameter 600mm 600mm 600mm 600mm
Printing speed 130m/min 130m/min 130m/min 130m/min
Register precision ≤0.15mm ≤0.15mm ≤0.15mm ≤0.15mm
Drying method Electric heating Electric heating Electric heating Electric heating
Machine power 132kw 142kw 152kw 162kw
Machine weight 23000KG 24000KG 25000KG 26000KG
Machine size 16200*2500*2600mm 16200*2700*2600mm 16200*2900*2600mm 16200*3100*2600mm
