| Brand Name: | HOLYKELL |
|---|---|
| Accuracy: | 0.5%F.S. |
| Material: | 316L stainless steel |
| Measuring range: | 100-1800mm |
| display color: | Fuel Tank Level Sensor |
| Model Number: | Fuel Tank Level Sensor |
| Place of Origin: | China (Mainland) |
| Probe diameters: | 16mm |
| Output: | 4-20mA/0-5V/RS485 |
| Power supply: | 11-33VDC/24VDC |
| Process connector: | G1/2 male, M20*1.5 male, Flanges 2.5'' |
| Certificate approving: | Exia IICT6 and CE Certificate |
| Electronic connection: | Directly cable IP67 |
Quick Details
Specifications

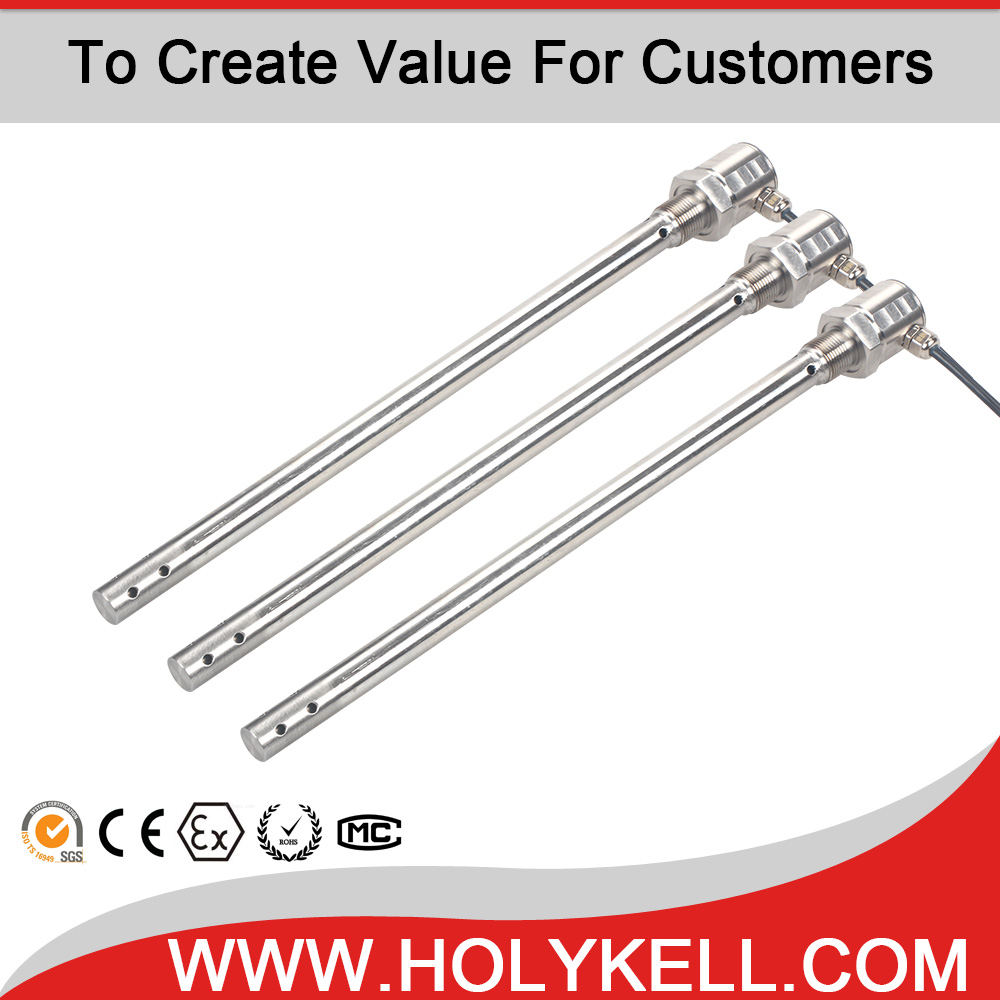

0-5V 0-10V 4-20mA RS485 RS232 GPS Capacitive Liquid Fuel Tank Level Sensor
Product Profit:
HPT621 is the customized sensor meter for precise measuring of the liquid level of automobile oil tanks, sealed tankers, trucks fuel tank, locomotives tanks and oil depots, etc.
the whole sensor is free of any mobile or elastic part and is featured with the good impact resistance, convenient Installation, high reliability, high precision, and stable performance. It can not only be installed on fuel tank and water tank requiring precise level measuring of gasoline, diesel, water and hydraulic oil, etc.
Application for measuring of various non-conductive liquids
Characters:
Fue oil meansurement Accuracy: ≤±0.5%F.S.
Precise linear and temperature compensation
Adjustable damp output time
Capacitance can fix on tank have Strong shock resistance
Applicable for fuel oil liquids,bus oil liquids and water liquids
Applications:
Diesel Tank Level Measurement
Liquid level measurement
Gasoline level measurement
Underground fuel tank level measurement
Industry Process Level Measurement
Auto, Truck fuel tank level measurement
Rooter, railway engine, tanker oil and fuel level measurement
Sealed tank liquid level measurement
Specification:
Model: |
HPT621 | ||
Level Range: |
0-100 mm 0-200mm 0-700mm ....0-1800mm optional | ||
Probe Diameter: |
Φ16 mm | ||
Overload: |
Standard atmosphere pressure or -1 Bar~40 Bar avaliable | ||
Accuracy: |
≤ ±1.0%F.S Typical ≤ ±0.5%F.S; Optional | ||
Medium compatible: |
Various oil media compatible with the 304 stainless steel | ||
Electronic Wire: |
2 Wires |
3 Wires |
4-5 Wires |
Output: |
4-20 mA |
0-5V |
RS485 |
Power Supply: |
11~33 V DC |
12VDC or 11~33 V dc |
11~33 V DC |
Temperature output: |
Suitable for CAN communication | ||
Electronic connection: |
Fixed cable by stainless steel cap and Explore Proof and water proof IP67 | ||
Process connect port: |
G1/2'' male, M20*1.5 male, Flanges 2.5''… (by customized) | ||
Medium compatible: |
Diesel, gasoline, water and others tank fuel or liquid is customized | ||
Certificate approve: |
CE Certificate and Exia II CT6 and Exd II CT5 | ||
