| Brand Name: | HOLYKELL |
|---|---|
| Accuracy: | 0.5% F.S. |
| Material: | 316L stainless steel |
| Measuring range: | -1 Bar-0-0.1 Bar,50 Bar 0-1M,500M H2O Optional |
| display color: | water tank level sensor |
| Model Number: | water tank level sensor |
| Place of Origin: | China (Mainland) |
| Output: | wireless |
| Level or Pressure measurement: | YES |
| Wireless type: | Zigbee |
| Working Pressure: | -1-20bar;0-1m/500m |
| Power supply: | 3.6V or 9V li Battery |
| Wireless network coordinator: | HW02 |
| PC Software: | English version or by customized |
Quick Details
Specifications

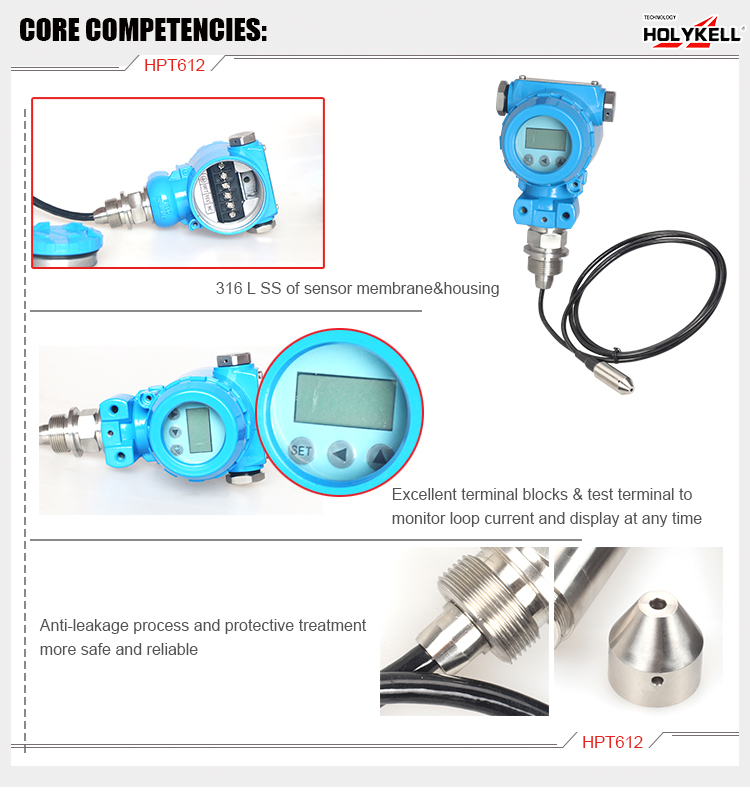

HOLYKELL HPT612 zigbee wireless pressure sensor,water tank level sensor wireless
Wireless HPT612-W
HPT612 is full sealed submersible level sensor. It is made by building in high stable and reliable piezo-resistive silicon pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. the special cable connects with housing, can be immerged into the media for a long time.
HPT612 level sensor has smart structure, high accuracy and good stability; it can be used for water or liquid measure and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.
HPT612level transmitters is based on Zigbee wireless protocol and max transfer distance up to 400 meters, if add A wireless signal router, distance up to 800 meters.
Product Name |
high quality wireless fuel level sensor |
Pressure Range: |
-1 Bar-0-0.1 Bar…..50 Bar / 0-1M……..500M H2O Optional |
Overload: |
150% F.S. |
Burst Pressure |
300% F.S. |
Accuracy: (Linearity; Hysteresis; Repeatability) |
≤ ±0.5%F.S (standard) ≤ ±0.25%F.S (customized) ≤ ±0.1%F.S (customized) Including non-lin., rep. and hys. Optional |
Long Stability: |
Standard: 0.1%F.S±0.05% |
Medium Temp Span: |
-20℃~70℃ |
Ambient Temp Span: |
-10~60℃ |
Storage Temp: |
-30℃~80℃ |
Temperature Compensation: |
-10℃~60℃ |
Medium compatible: |
Compatible with 316 Stainless Steel |
Output: |
Wireless Zigbee Protocol |
Power Supply: |
3.6V Li-Battery or 10…36VDC for outside power |
Insulate resistance: |
>100M @100V |
Zero Temp. Drift: |
0.03%FS/℃(≤100kPa); 0.01%FS/℃(>100kPa) |
FS Temp. Drift: |
0.03%FS/℃(≤100kPa); 0.01%FS/℃(>100kPa) |
Electronic connection: |
Sensor water proof IP68; Electronic Indicator IP65. |
Response time: |
≤10ms |
Pressure Type: |
Gauge pressure; Absolute pressure optional. |
Certificate approving: |
ExdⅡCT6 and CE Certificate. |
EMC Standard: |
Electromagnetic radiation:EN50081-1/-2 Electromagnetic susceptibility:EN50082-2 |
Weight: |
Net weight is about 2.2KG, Full Packing weight is about 3.0KG (Not Include Cable) |
Remarks: |
Special applications request by Customized |
