Application

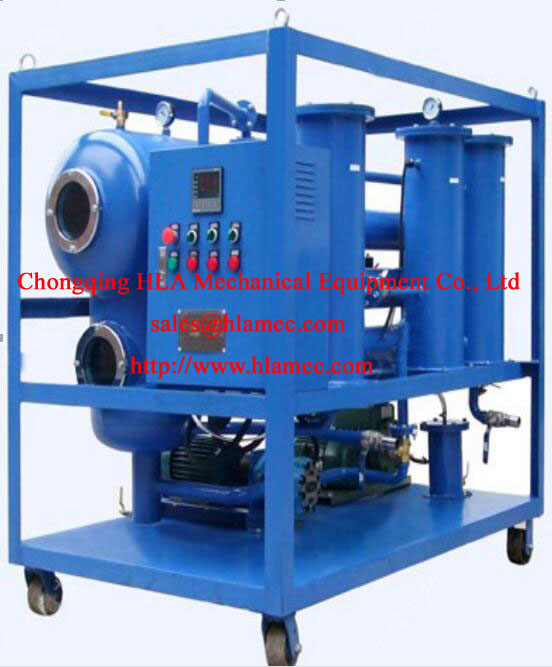

SVP series efficiency single stage vacuum transformers insulation oil purifier can quickly and effectively remove water, gas, oxide materials, fee carbon and other impurities from transformer oil to lower the PH value, improve breakdown voltage and quality. Also serving as the vacuum oiling equipment and drying equipment, SVP vacuum transformer oil purifier adopts high vacuum oil dehydrator and degasification system and duplex-Stereo film evaporating technology for drying insulation oil and recover the dielectric strength. this vacuum insulation oil purification machine can live line work on the spot and also can be suitable to purify other insulating oils, such as capacitor oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil and so on.



Features

1. Horizontal vacuum separation technology, high efficient separation of vacuum degassing, exponentially increase evaporation area, increase the retention time of the oil keep in the vacuum chamber, high efficient and reliable.

2. Radiant heating system, enhance the contact area of the oil and oil heater, reduce the surface temperature of the heater, put an end to oil cracking aging.

3. Fault protection, Heater protection, prevent heater dry, pressure protection, discharge fault alarm and motor alarm.

4. Vacuum pump front cooler, reduce the water into the vacuum pump, and reduce the frequency of replace the vacuum pump oil, extend the life of the vacuum pump.

5. Patent holder degassing tank "foam protection structure + two-way foam electronic monitoring system", to prevent vacuum pump oil injection.

6. Automatic oil floating ball and automatic oil level electronic control system, realize the man-machine separation

7. Using high pressure oil pump, put oil in/out through machine stability, low noise, long work life.

8. Stainless steel mesh filters, acid resistant and anti-corrosion, large filtration area, strong suction sewage capacity, high working efficiency.



Technical specification

Model		SVP010	SVP020	SVP030	SVP050	SVP080	SVP100	SVP150	SVP200	SVP300
Capacity(L/min)		10	20	30	50	80	100	150	200	300
Vacuum level		-0.06～-0.095 Mpa
Working pressure		≤ 0.4 Mpa
Temperature range		20～ 80℃
Filtering precision		≤1 micron
Continuous work		≥200 hr
No failure running		≥5000 hr
Power supply		380V, 50HZ, 3PH ( or Customized )
Working noise		65 dB
Heating power (kw)		15	15	24	30	48	60	90	108	130
Total power (kw)		16.8	16.8	26	33	52	66	100	120	148
Inlet/outlet(mm)		25	32	32	38	44	50	58	65	25
Weight (kg)		240	250	280	320	600	750	900	1050	1150
Dimension (mm)	L	1100	1130	1220	1300	1350	1420	1600	1650	1800
	W	760	800	820	900	1000	1000	1200	1250	1350
	H	1100	1220	1300	1310	1350	1750	1900	1920	2000
