| Machine Type: | Other |
|---|---|
| Material: | Plastic |
| Certification: | CE,ISO |
| Brand Name: | BIOBASE |
| Condition: | New |
| Machine Type: | Clean booth |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 1500*2000*2500mm |
| Power(W): | 500 |
| Industry Used: | Pharmaceutical Cleaning |
| Model Number: | BKCB-1500 BKCB-2000 BKCB-3000 BKCB-5000 |
| Place of Origin: | China (Mainland) |
| External Size(W*D*H): | 1500*2000*2500mm |
| HEPA Filter: | 99.999% |
| Consumption: | 500W |
| Weight: | 350KG |
| FFU No.: | 4 PCS |
| Clean level: | ISO5 Class 100, class A |
| control system: | Micro system |
Quick Details
Specifications

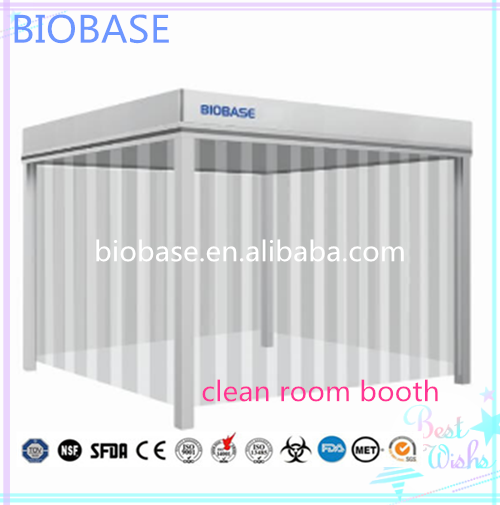

PVC anti-static dustproof curtain Clean Booth,Down Flow Booth in clean room
Features:
Technical Parameters:
Features:
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost
and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement
(Universal wheel can be installed).
Technical Parameters:
Model |
BKCB-1500 |
BKCB-2000 |
BKCB-3000 |
BKCB-5000 |
External Size (W*D*H) |
1500*2000*2500mm |
2000*3000*2500mm |
3000*4000*2500mm |
5000*5000*2500mm |
HEPA Filters |
99.999% efficiency at 0.3 um | |||
Consumption |
500W |
800W |
1000W |
1600W |
Weight |
350kg |
420kg |
570kg |
820kg |
FFU Nos. |
4 pcs |
6 pcs |
12 pcs |
25 pcs |
Clean Level |
ISO 5 (Class 100), Class A | |||
Control System |
Microprocessor control system | |||
Rectangular Tube Material |
Cold-rolled steel with anti-bacteria powder coating | |||
Wall Material |
Anti-static dustproof curtain | |||
Blower |
Built-in centrifugal blower; speed adjustable | |||
UV Lamp |
Emission of 253.7nanometers, with UV timer | |||
Air Velocity |
0.1~0.6m/s, average 0.45m/s | |||
Noise |
≤58db | |||
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Gross Weight |
310Kg |
670Kg |
720Kg |
1300Kg |
Package Size (W*D*H) |
2150*880*900mm 2300*700*500mm |
1200*1200*950mm 1200*1200*950mm 3150*1200*950mm |
2200*1180*950mm 2200*1180*950mm 2150*1100*450mm |
2200*1180*950mm 2200*1180*950mm 2200*1180*950mm 2200*1180*950mm 2650*1300*550mm |
Customized design for clean level, size or material is available | ||||
