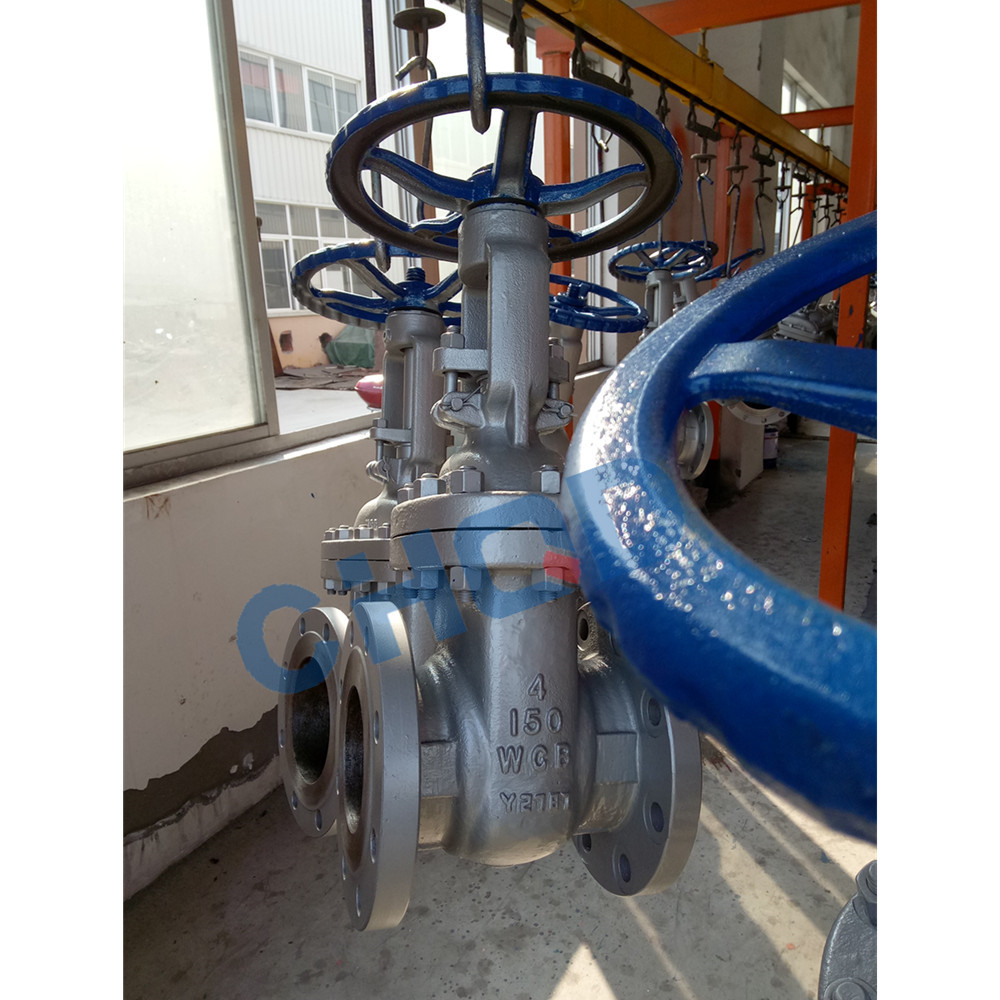

| Material: | A216 WCB, WC6, WC9, C5, C12, C12A, CF8M and special alloys |
|---|---|
| Brand Name: | CHQD |
| Pressure: | 150LBS 300LBS 600LBS 900LBS |
| Port Size: | 2" 4" 6" 8" 10" 12" 16" 18" |
| Temperature of Media: | from-196 Celsius degree to +600 Celsius degree |
| Place of Origin: | China (Mainland) |
| HIGH PRESSURE: | FLANGED END |
| OSY TYPE: | BOLT BONNET |
| CAST STEEL: | FORGED STEEL |
| HANDWHEEL: | WORM GEAR |
| PNEUMATIC: | MOTORIZED |
Quick Details
Specifications
Design Features
Design standard as per: API 6D, ASME B16.34, GB/T 19672
the valve disc and valve seat seal are repeatedly treated by special processes, and protected by multiple seals, and featured with Anti-corrosion, penetration-proof, anti-abrasion and long service life;
Valve seat is designed with hard-soft double seal, having Reliable tightness;
with a full bore design, both the coefficient of flow Resistance and the pressure loss are very small;
When the valve is fully opened, medium erosion occurring to Its sealing face is smaller than that of other valves;
the through conduit gate valve with diversion holes Installed on a pipeline can also be cleaned by a pipe cleaner directly;
for adjustment structure, the valve have a good flow Adjusting ability;
No space restriction on valve installation, that is, both parallel and perpendicular installations are allowed.
Product RangeBody material: carbon steel, stainless steel,
Nominal diameter: 2"～36"
Pressure range:Class150～2500
End connection: RF, RTJ, BW
Working temperature:-46℃～+200℃
Operation: handwheel, gear box, electric, pneumatic Actuator, electro-hydraulic actuator, etc.
