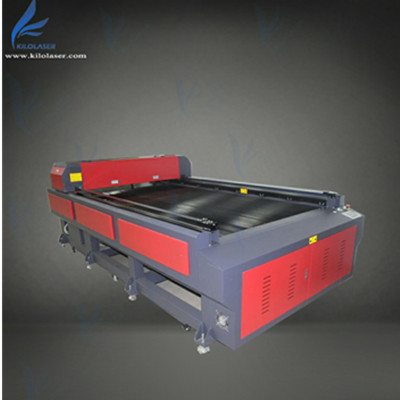

this 300w laser cutting machine is applicable to color plates, Plexiglassheet and other hard or high thickness Non-metallicmaterials.As for the High power,Stable Fast speed advantages.Which Improve the industry processing in large extend.





Technical  Parameter

Model                                   KL-1630B

Working Platform Size              1600x3000mm

Laser power                     300w

Laser type                  co2 Sealed glass tube

Controlling system                         RD6442(optional)

Table Type                        Blade Work Table

Exhaust Power                   550W  Fan Blowing Rate: 18m3/min

Phase Current          3.5A

Software Format Support                  CorelDraw,Photoshop,AutoCAD, Etc

Graphic Format Support                   AI, PLT,BMP, DXF, DST

MaxCutting speed                    300mm/s

Max Engraving speed              500mm/s

Repeated Positioning             Accuracy±0.5mm

Min.Cutting Character            English Letter 2mm

Max.Cutting Depth                  0-25mm(it'S up to the Material)

Cooling type             " Water  Cooling"

Working Temperature               "  0-35°C "

Work Humidity                   5-95%

Working Voltage                220V/50Hz/6KVA

Machine Size             2200x4000x1150mm

Packing Dimension           2350x4100x1400m

Netweight                 1300Kgs

Gross  Weight                1500Kgs
