Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: Hankui
Automatic Grade: Automatic
Type: Horizontal
Condition: New
Certification: CE ISO
Weight: According to the lathe
Dimension(L*W*H): Specific Model
Power(W): 5.5/7.5/11KW or other
Voltage: 3phase/220V/380V/440V/others
Model Number: CK50L
Place of Origin: China (Mainland)
Max. Swing Diameter: 500mm
CNC or Not: CNC
Max processing length: 550mm
Spindle speed: 2500rpm
Spindle type: A2-8
Chuck diameter: 250mm
Control system: Siemens/Fanuc/Syntec
Tool size: 25*25mm
Tailstaock sleeve taper: MT5
Processing precision: IT6
Product Name: Slant bed type servo CNC lathe machine for sale

Specifications

Product Description
                                                                                Main Products

Lathe

APC
Slant  bed CNC lathe
Flat bed CNC lathe
Pipe threading CNC lathe
Vertical CNC lathe

VMC

APC
VMC Vertical Machining Center
VMC Vertical Milling Machine
VMC Horizontal Machining Center

Other types

Manual Operation
Slant bed lathe
Flat bed lathe
Pipe threading lathe

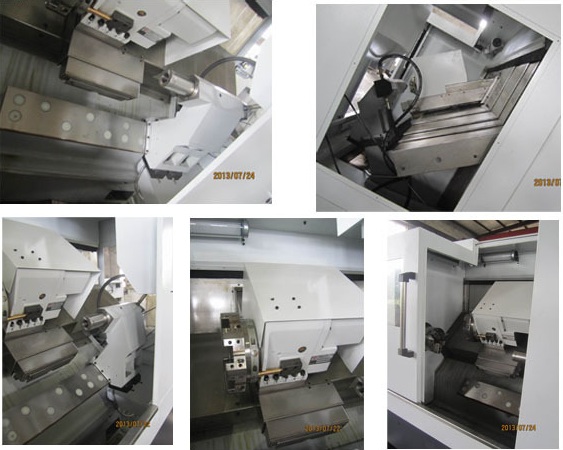

Slant bed type servo CNC lathe machine for sale

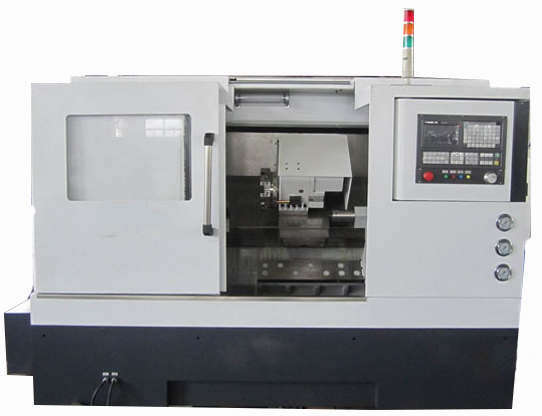

 Slant bed type servo CNC lathe machine for sale
 Main Features

1) Automatic Lubrication Configuration

2) Full Enclosed Cover Designation

3) Tri-color Warning Light

4) More thank 20 years experience

5) Professional service and technical support

Technical parameter
ITEM
CK-32L
CK-36L
CK-40L
CK-50L
CK-63L
CK-80L
Processing range
Max.Swing over bed
320
360
400
500
630
800
Max.Swing over slide
160
160
220
320
500
640
Max. Processing length
350
350
450
550
890
890
Max. Cutting dia.(disc type)
200
254
360
420
630
800
Max. Bar dia.
40
45
51
65
75
90
Spindle
Spindle speed
4000
4000
3500
2500
2250
1500
Spindle nose ISO form
A2-5
A2-5
A2-6
A2-6
A2-8
A2-11
Thru-hole dia.
56
56
66
76
86
112
Chunk dia.
160(6" )
160(6" )
200(8" )
200(8" )
320(12" )
380(15" )
Motor power
3.7(servo)
3.7(servo)
7.5(servo)
11(servo)
18.5(servo)
22(servo)
Body structure
Body structure
30°integrated
30°integrated
45°integrated
45°integrated
30°integrated
30°integrated
X axis travel
200
200
210
260
410
410
Zaxis travel
350
350
450
550
860
860
X/Z axis rapid speed
24/24
24/24
24/24
18/18
18/18
Tool holder
Type
63-8T
80-8T
100-8T
160-8T
160-8T
Tool size
20*20
20*20
20*20
25*25
25*25
25*25
Tailstock
Tailstock sleeve dia.
52
52
75
150
150
Tailstock sleeve travel
60
60
100
150
150
Tailstock sleeve taper
MT4
MT4
MT5
MT5
MT5
Precision
Processing precision
IT6
Repositioning precision
X:0.006,Z:0.008
X:0.006, Z:0.01
Roughness
Ra.≤0.8
Ra.≤1.25
Dimension
N.W (KG)
1500
1700
2700
3500
5500
5600
Dimension (M)
1.8*1.2*1.7
1.8*1.6*1.6
2.6*1.8*1.6
3.1*1.8*1.8
3.8*2.2*2.2

Packing & Delivery
Slant bed type servo CNC lathe machine for sale
Packaging
Size
Based on the detailed machine
Weight
1500-6000kg

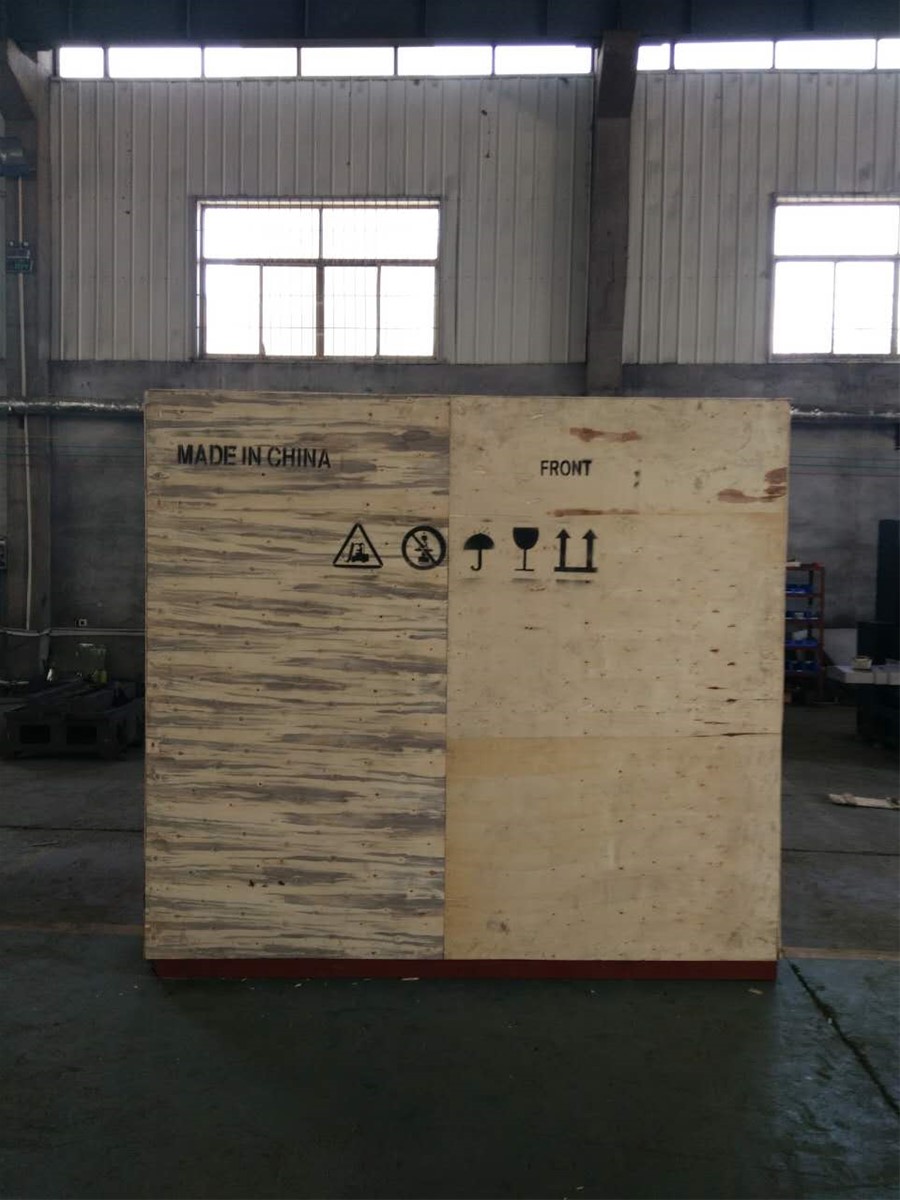

Packaging Details
the normal package is wooden box and steel frame.Inner use the polyurethane and bubble wrap to protect. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special reques
