Scope of application

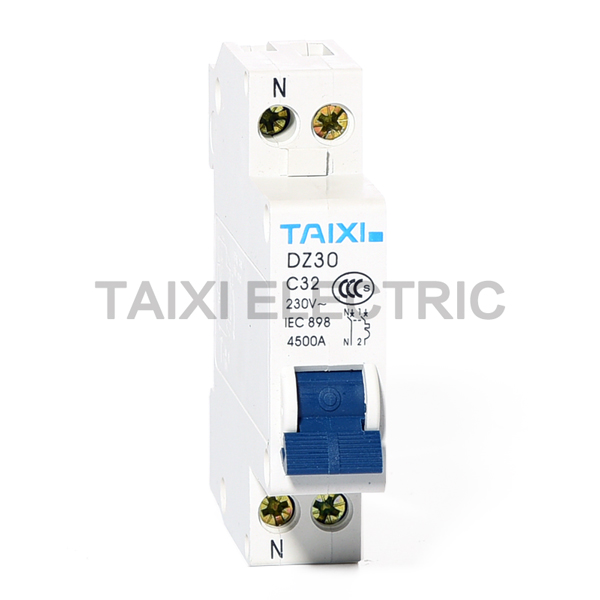

DZ30-32 Miniature Circuit Breakers (DPN) are designed for single-phase residential circuits of AC 50Hz or 60Hz, rated voltages of 230V, and protects against overload and short-circuiting of electrical circuits. Zero and Fire line be cut off in the same time to eliminate the fire line and zero line connected to reverse or failure and fire hazard from zero line to ground potential, the 240V Circuit Breaker is the ideal distribution protection switch in the field of residential housing. this product complies with standards of IEC60898-1 and GB10963.1. DZ30-32 Circuit Breaker Is produced by TAIXI have got national CCC certification.



Technical parameters

■ Rated current: 6,10,16,20,25,32 A
■ Impulse withstand voltage: 4kV
■ Mechanical life: 10,000 times
■ Electrical life: 4000 times
■ Ambient temperature: Ambient temperature is -5℃ ~ +40℃, the average temperature does not exceed 35 ℃ within 24h.
■ Altitude: ≤2000m.
■ Standard: IEC60898-1 / GB10963.1
■ Certification: CCC certification
■ Tripping characteristics: to protect conventional load and distribution cables, instantaneous trip range (5 ~ 10) In
■ Installation: TH35-7.5 installation rail. the product installed with null line directly, to avoid the null line wiring error and potential shock hazard.

■ Rated current (A): 6,10,16,20,25,32

■Pole: 1P+N

■Frame rated current(A): 32

■Rated voltage(V): 230

■Rated short-circuit breaking capacity(A): 4500
