| Max. Power: | 300w |
|---|---|
| Number of Cells: | 72 |
| Size: | 1956*992*40mm |
| Material: | Polycrystalline Silicon |
| Brand Name: | JINSHI |
| Model Number: | NBJ-300P |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Electrical Parameters at Standard Test Conditions(STC) |
Module type |
NBJ-290P |
NBJ-295P |
NBJ-300P |
NBJ-305P |
NBJ-310P |
Rated Maximum Power (Pmax/W) |
290 |
295 |
300 |
305 |
310 |
Maximum Power Voltage (Vmp/V) |
36.10 |
36.25 |
36.41 |
36.71 |
37.00 |
Open-circuit Voltage (Voc/V) |
44.86 |
45.00 |
45.20 |
45.35 |
45.45 |
Maximum Power Current (Imp/A) |
8.04 |
8.14 |
8.24 |
8.31 |
8.38 |
Short-circuit Current (Isc/A) |
8.53 |
8.65 |
8.73 |
8.79 |
8.85 |
Module Efficiency (%) |
14.9 |
15.2 |
15.5 |
15.70 |
16.00 |
STC: Irradiance 1000W/M2 Module Temperature: 25℃ AM=1.5 | |||||
Mechanical Characteristics |
Cell Size (mm) |
156X156 |
No. of cells |
72(6X12) |
Module Size (mm) |
1956X992X40 |
ModuleWeight (KG) |
21 |

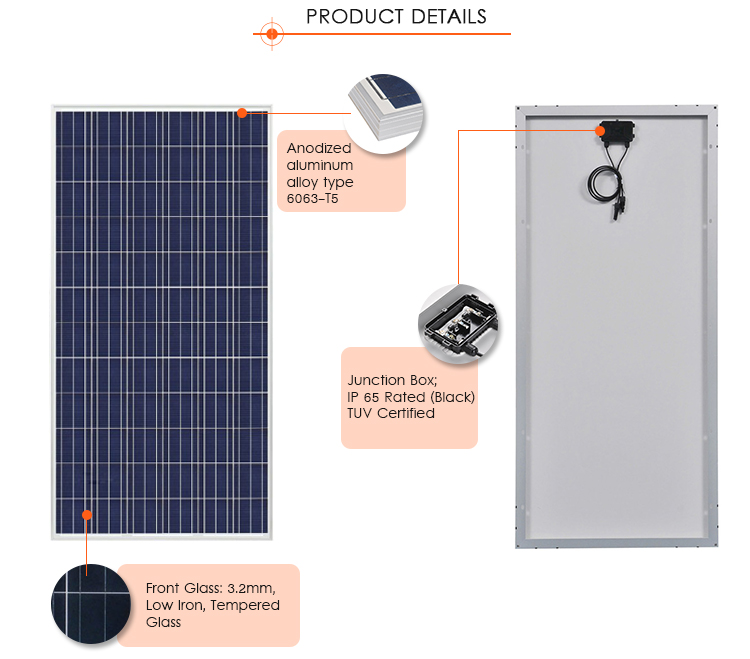

| Construction Materials |
Front Glass |
3.2mm, Low Iron, Tempered Glass |
Frame |
Anodized Aluminum Alloy Type 6063-T5 |
Junction Box |
IP 65 Rated (Black) |
Output Cables |
TUV 1×4mm2, length:900mm |
Connector |
MC4 (IP67) |
Encapsulation Material |
EVA(0.45±0.03mm thickness) |
Back Foil |
White TPT(0.32±0.03mm thickness) |
Fixing Adhesive |
Silicone Sealant(White) |
Temperature Coefficient |
Power Tolerance |
0~+3% |
Temperature Coefficient of Pmax |
(-0.43±0.05)%/℃ |
Temperature Coefficient of Voc |
(-0.33±0.02)%/℃ |
Temperature Coefficient of Isc |
(0.058±0.01) %/℃ |
NOTC(℃) |
(47±2)℃ |
Operating Conditions |
Max. System voltage |
1000DVC (IEC) |
Max. System fuse rating (A) |
15 |
Operating temperature (℃) |
-40~85 |
Max. Static load, front (e.g., snow) PA |
5400 |
Max. Static load, back (e.g., wind) PA |
2400 |
|
|
