| Weight: | 135KG |
|---|---|
| Diameter of Blade: | 350-500mm |
| Cutting Depth: | 180mm |
| Brand Name: | concrete cutting machine |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Running Speed: | 3600rpm |
| Certification: | CE,ISO9001 |
| Dimension(L*W*H): | 1100*600*970 |
| Model Number: | HQR500 |
| Place of Origin: | China (Mainland) |
| concrete cutting machine: | high quality |
Quick Details
Specifications
High quality and

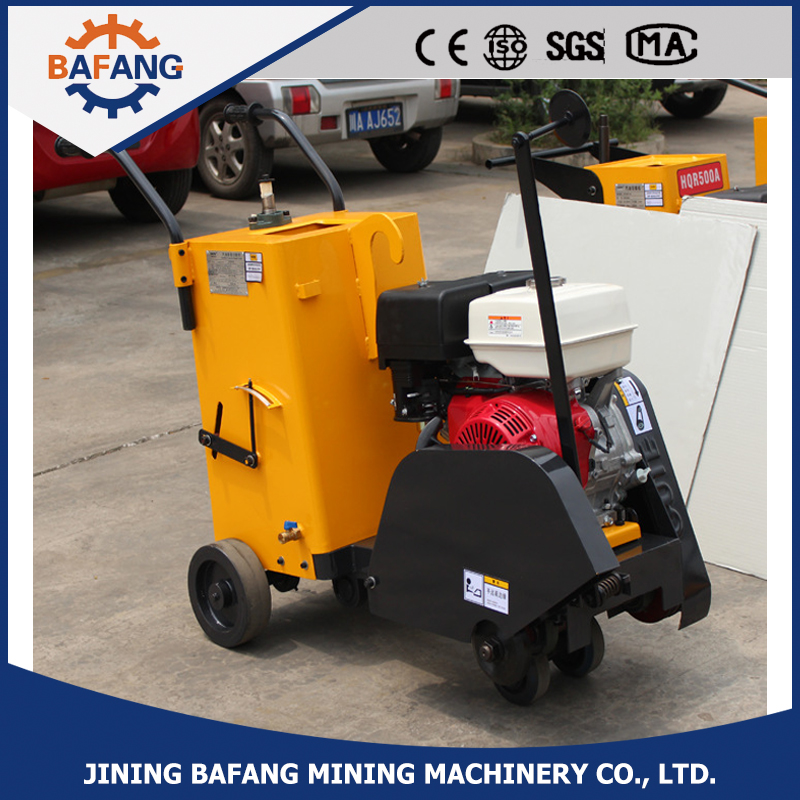

Hot sale concrete cutting machine walk behind concrete cutter road cutter
HQR500 concrete cutter is simple structure, stable cutting, high speed, even smooth kerf, handy operating and high efficiency.
It's especially suitable to be used at no electricity supply place or in road construction, construction engineering, stone material processing and cement precast etc occupation.
this floor saw is uncompromising. It combines an excellent cutting performance with compact dimensions and a light design. the engine, on the other hand, is extremely impressive, as it runs tenaciously and with reliability even under the most difficult conditions due to its enormous power reserves.
Tech Data
Model |
HQR500 |
HQR500 |
Engine Make |
HONDA |
QR |
Engine Model |
GX390 |
QR186F |
Engine Speed-max (rpm) |
3600 |
3000/1500(3600/1500) |
Engine Oil Capacity (L) |
1.1 |
1.7 |
Fuel Tank Capacity (L) |
6.5 |
5.5 |
Water Tank capacity (L) |
37 |
37 |
Nominal Blade Speed (rpm) |
2800 |
2800 |
Cutting depth max (mm) |
180 |
180 |
Saw blade diameter (mm) |
350-500 |
350-500 |
Net Weight (KG) |
135 |
152 |
Dimensions (L×W×H) (mm) |
1100×600×970 |
1100×600×970 |
