| Brand Name: | Autonola |
|---|---|
| Type: | ECG |
| Warranty: | 18 months |
| Portable: | 1 |
| Certification: | CE ISO |
| Place of Origin: | China (Mainland) |
| Model Number: | AT 8160 |
| Number of channels: | 6 |
| Color: | white |
| Lead: | Standard 12 leads |
Quick Details
Specifications
Main Features

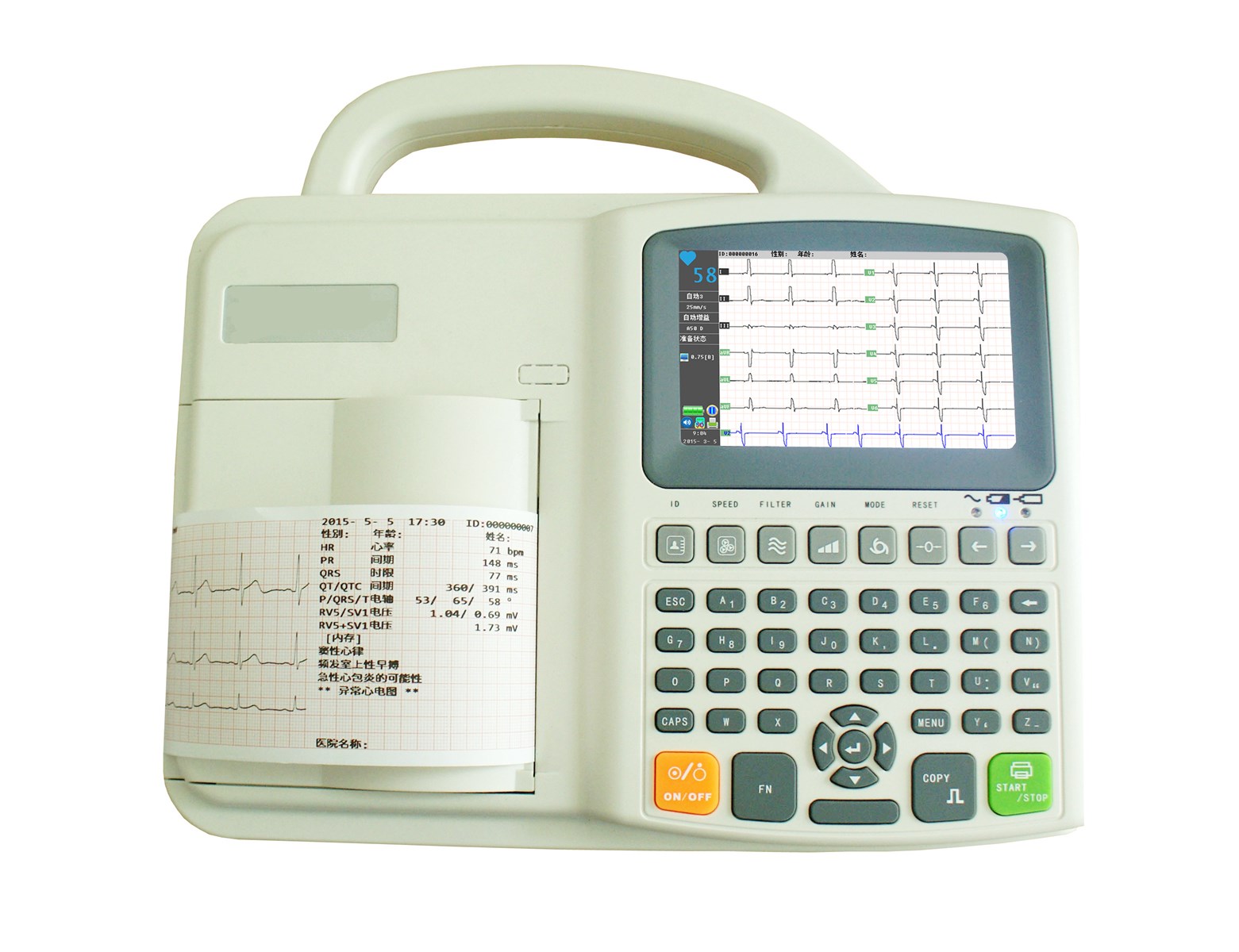

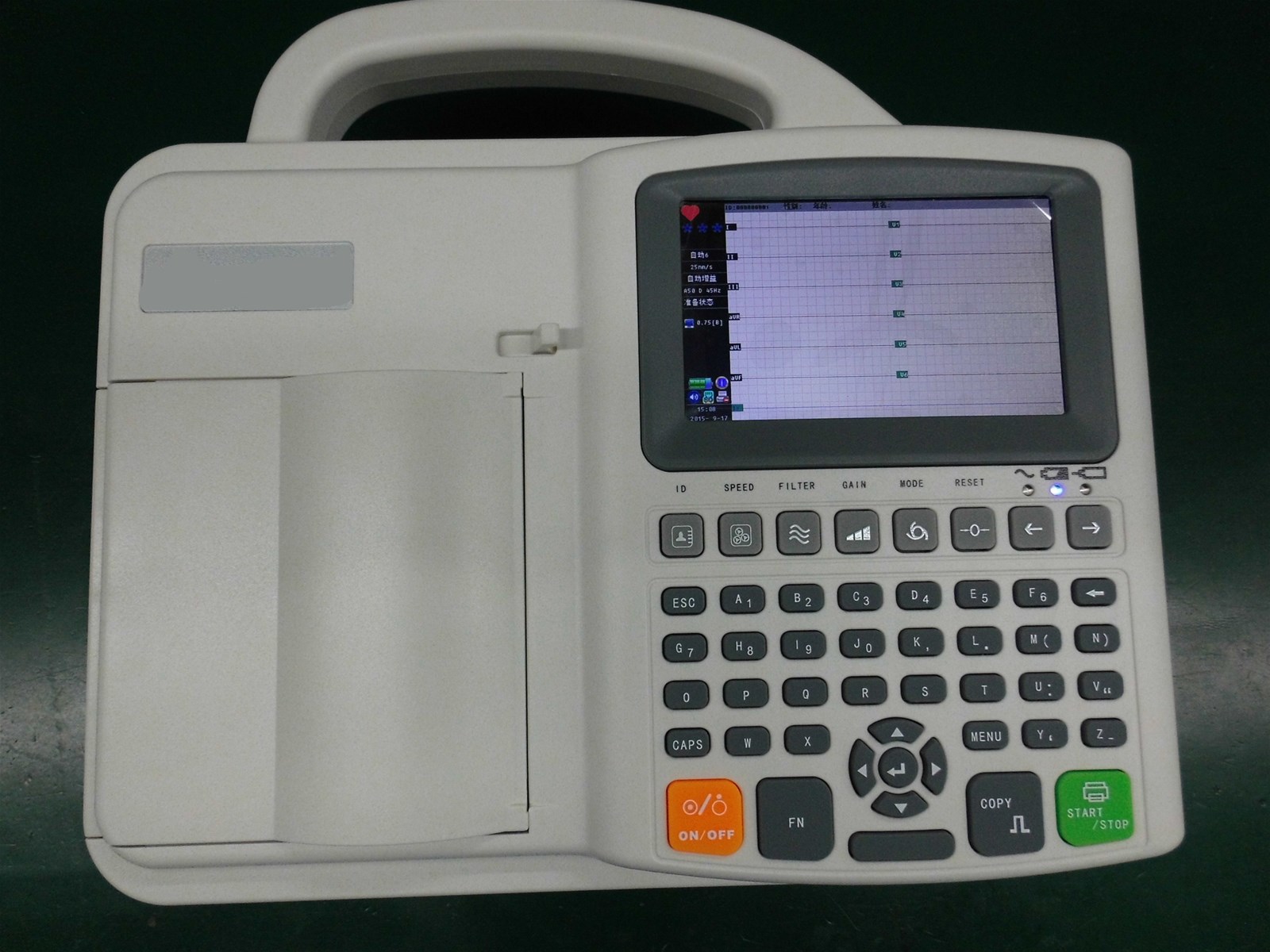

1.6 channel ECG machine with interpretation
2.5.0'' color TFT LCD display
3.Simultaneous 12 leads acquisition and 1, 1+1, 3 and 6 channel (Manual/Auto)
Recording with high resolution thermal printer
4.Manual/Auto working modes
5.Use digital isolation technology and digital signal processing
6.Baseline stabilization inspection
7.Full alphanumeric silicon keyboard
8.Support U disk storage
9.Support USB function (Optional)
Technical Specifications
Lead: Standard 12 leads
Acquisition: Simultaneous 12leads
A/D Converter: 14 bit
Sampling Rate: 1000Hz
Working Mode: Manual/Auto
Interference Filter: AC Filter and EMG Filter
CMMR: ≥100dB (with AC filter)
Input Circuit: Floating, protection circuit against defibrillator effect
Input Circuit Current: ≤0.1μA
Input Impedance: ≥50MΩ
Patient Current Leakage: ＜10μA
Calibrating Voltage: 1mV±2％
Skin Voltage Tolerance: ≥±500mV
Time Constant: ≥3.2s
Noise Level: ＜15μVp-p
Sensitivity Threshold: ≤20μV
Signal Channel Interference: ≤0.5mm
Printer: Thermal printer
Paper: 112mmx20m, roll
Page Speed: 6.25, 12.5, 25, 50mm/s (±3％)
Sensitivity Printer: 10 mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU: 32 bits
Safe Class: GB9706.1, Class I, Type CF
Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA
AC 85～265V, 50/60Hz
DC14.8V (2200mAh), rechargeable Li-ion battery
Dimension: 310mm×270mm×73mm
Weight: 1.75kg (with battery)
FAQ1.Q: What is the cost of your products?
A: We will recommend you the most suitable product for you as you tell me your definite demands.And we will send you email including detail information and quote for you!
2.Q;Do your products have CE or ISO certification?
A:Yes,most of our products have CE and certification,such as ultrasound scanner, color doppler and so on.
3.Q: how long does it take you to make delivery?
A: Generally, we will make delivery within 3 or 4 days after payment.
