Features:

Module design: Product detection system using modular design, you can freely select the detection system.

Mainstream frequency band suppression: Mainstream frequency band detection and interference, covering the mainstream radio communication band.

Standard electricity: Equipment using standard 220V mains, no power equipment.

Assembly is simple: Modular design for easy access and assembly.

Engineering proposal:the equipment is engineered according to different customer scenarios to ensure optimal performance.

Artificial engineering: Ergonomic design, easy to operate.

Mode optional: the user can select unattended mode or manual control mode.

Interference distance: Transmit power adjustable, interference distance is 1000 ~ 1200 meters.

Hit rate is high:360 degree omnidirectional detection and interference, without precise aiming.

Complex weather:Support complex weather conditions under the detection and combat, including haze, mist, 6 below Windy, drizzle.



Specifications:

Detection parameters:

Radio detection

Working frequency:100kHz～40GHz;

Direction Sensitivity:≥15dBμV/m;

Direction-finding accuracy:≤2°(RMS);

Radar detection:

Working frequency: Ku Band?

Discovery probability:Pd=0.8,False alarm rate:Pfa=10^-6,Reflective surface:0.01m^2,Detection distance: 2km.

Antenna fan sweep range: 0°～360°

Target radial speed: 3km/h～72km/h

Minimum detection distance:≥200m

Distance accuracy:≤15m

Azimuthal accuracy:≤0.5°

Distance resolution:≤15m

Azimuth resolution:≤2°

RF power: 10W

Photoelectric detection:

Detection distance:≥1KM

Distance resolution:≤15m

Azimuth resolution:≤1°

Interference parameters

Transmit power: MAX 10W,Third gear adjustable

Effective distance: 1000～1200 meters

Interference mode: Unmanned Aerial Vehicle Departure / Unmanned Aerial Vehicle (can be choose)

Weight: 100kg

Operate temperature: 20-55(Degrees Celsius)

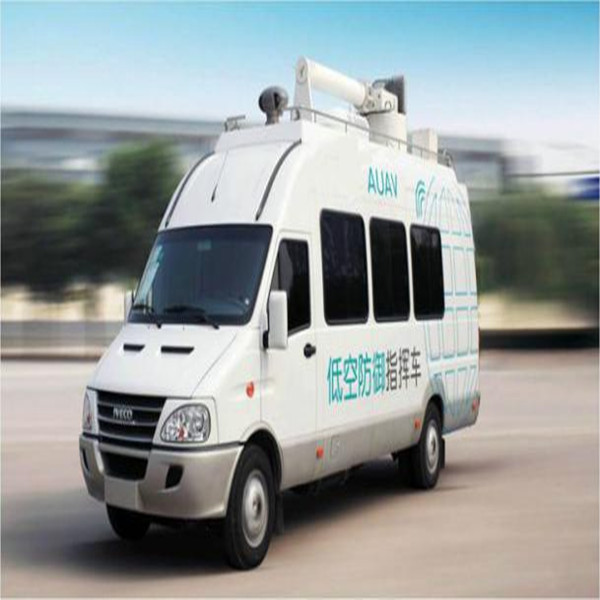

Optional models: Iveco, Prado
