Product Main

Quick Details

Item Type:	Flood Lights
Light Source:	LED
Brand Name:	AD Commercial, ODM or OEM Available
Certification:	CE,EMC,LVD,RoHS
Lamp Body Material:	Aluminum
Light Source:	Bridgelux
Item Type:	flood light
Model Number:	AD-FL45WBC
Place of Origin:	China (Mainland)
IP Rating:	IP65
Working Lifetime(Hour):	30000
Beam Angle(°):	75
Color Temperature(CCT):
CRI (Ra>):	75
Lamp Luminous Efficiency(lm/w):	100
Lamp Power(W):	45
Input Voltage(V):	AC85-265V
LED Light Source:	3030 45 PCS

Specifications

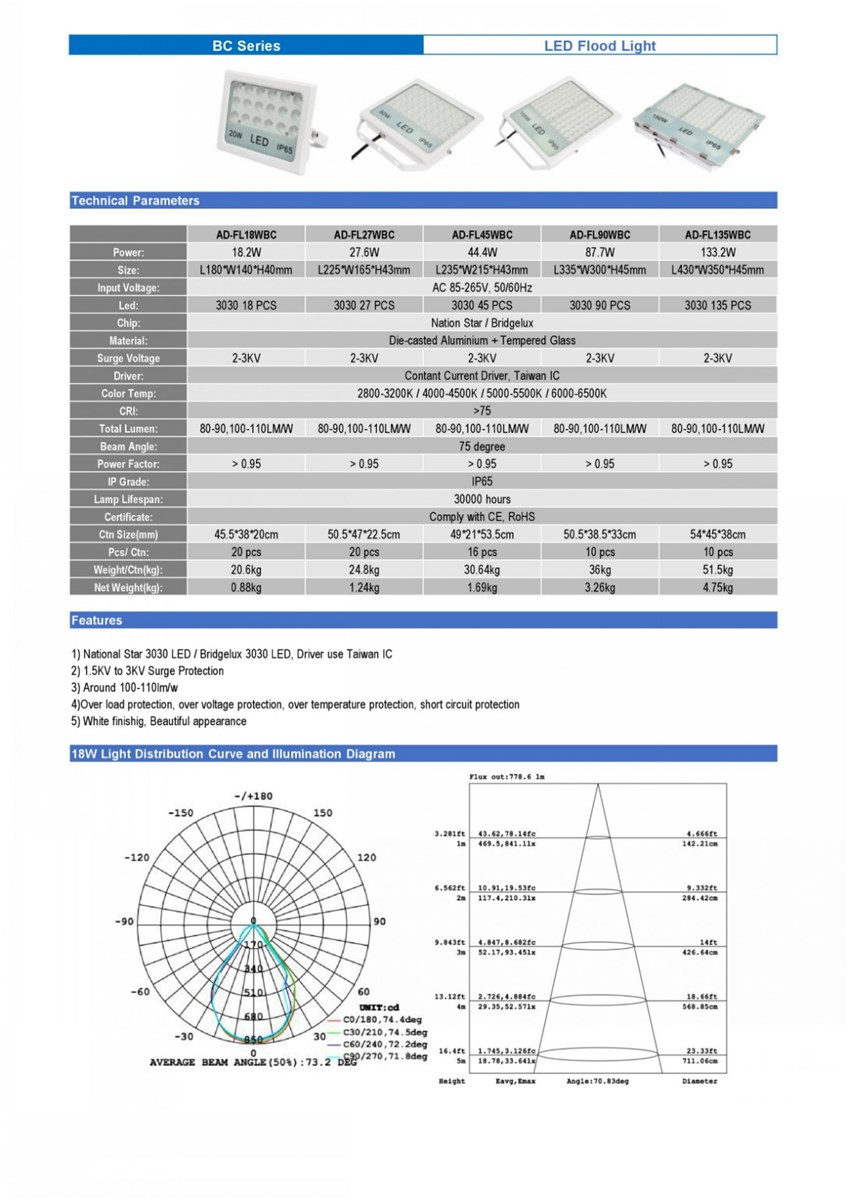

Technical Parameters
	AD-FL18WBC	AD-FL27WBC	AD-FL45WBC	AD-FL90WBC	AD-FL135WBC
Power:	18.2W	27.6W	44.4W	87.7W	133.2W
Size:	L180*W140*H40mm	L225*W165*H43mm	L235*W215*H43mm	L335*W300*H45mm	L430*W350*H45mm
Input Voltage:	AC 85-265V, 50/60Hz
LED:	3030 18 PCS	3030 27 PCS	3030 45 PCS	3030 90 PCS	3030 135 PCS
Chip:	Nation Star / Bridgelux
Material:	Die-casted Aluminium + Tempered Glass
Surge Voltage	2-3KV	2-3KV	2-3KV	2-3KV	2-3KV
Driver:	Contant Current Driver, Taiwan IC
Color Temp:	2800-3200K / 4000-4500K / 5000-5500K / 6000-6500K
CRI:	>75
Total Lumen:	80-90,100-110LM/W	80-90,100-110LM/W	80-90,100-110LM/W	80-90,100-110LM/W	80-90,100-110LM/W
Beam Angle:	75 degree
Power Factor:	> 0.95	> 0.95	> 0.95	> 0.95	> 0.95
IP Grade:	IP65
Lamp Lifespan:	30000 hours
Certificate:	Comply with CE, RoHS
Ctn Size(mm)	45.5*38*20cm	50.5*47*22.5cm	49*21*53.5cm	50.5*38.5*33cm	54*45*38cm
Pcs/ Ctn:	20 pcs	20 pcs	16 pcs	10 pcs	10 pcs
Weight/Ctn(kg):	20.6kg	24.8kg	30.64kg	36kg	51.5kg
Net Weight(kg):	0.88kg	1.24kg	1.69kg	3.26kg	4.75kg
